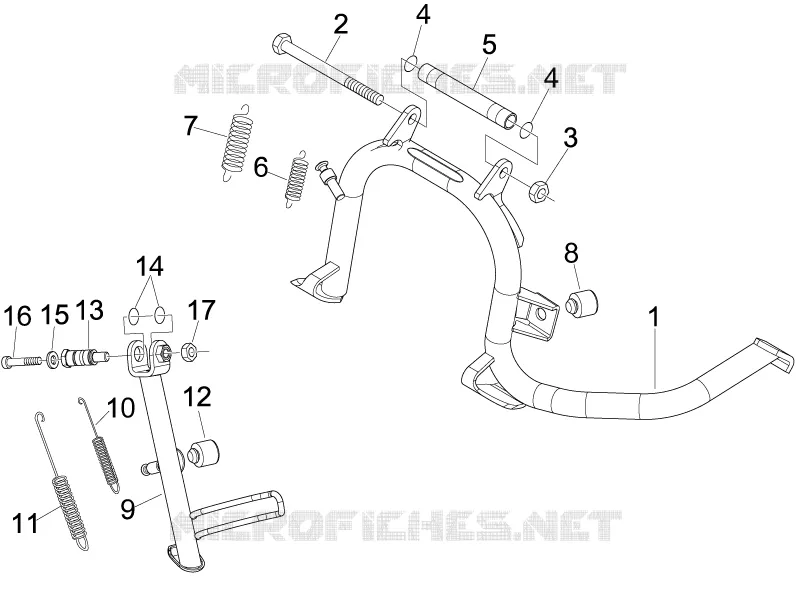

Stand/s
1
2
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
Central stand with i.p.
56340R
$81,00 Unit Price incl. VAT
1
CENTRAL STAND WITH IP. (BEVERLY 250)
647522
Not Available
2
Hex screw M10x130
030115
$1,85 Unit Price incl. VAT
3
Self locking nut M10
232108
Not Available
3
Self locking nut M10
002440
$0,34 Unit Price incl. VAT
4
O-ring
273754
$0,16 Unit Price incl. VAT
5
Spacer
582298
$3,27 Unit Price incl. VAT
6
Internal lateral stand spring
582850
$4,89 Unit Price incl. VAT
7
Lateral stand spring
582851
$4,89 Unit Price incl. VAT
8
Pad
272426
Not Available
9
Side Stand with i.p.
647472
$26,65 Unit Price incl. VAT
10
Spring
295788
$4,82 Unit Price incl. VAT
11
Spring
295789
$4,82 Unit Price incl. VAT
12
Stop buffer
164245
$0,97 Unit Price incl. VAT
13
Side stand fixing screw.
647595
Not Available
14
Gasket
191189
$0,17 Unit Price incl. VAT
15
Washer 5,3x10x0
012532
$0,67 Unit Price incl. VAT
16
Hex socket screw M5x16
292889
Not Available
17
Self locking nut M10
232108
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
