1
Engine displacement
125
2
Model
BEVERLY
3
Year
2014
4
Trim
Beverly RST 4T 4V ie E3
5
Parts Catalog
Rear wheel
6
Parts Diagram
Parts Catalog
Cooling system
by
Throttle body - Injector - Union pipe

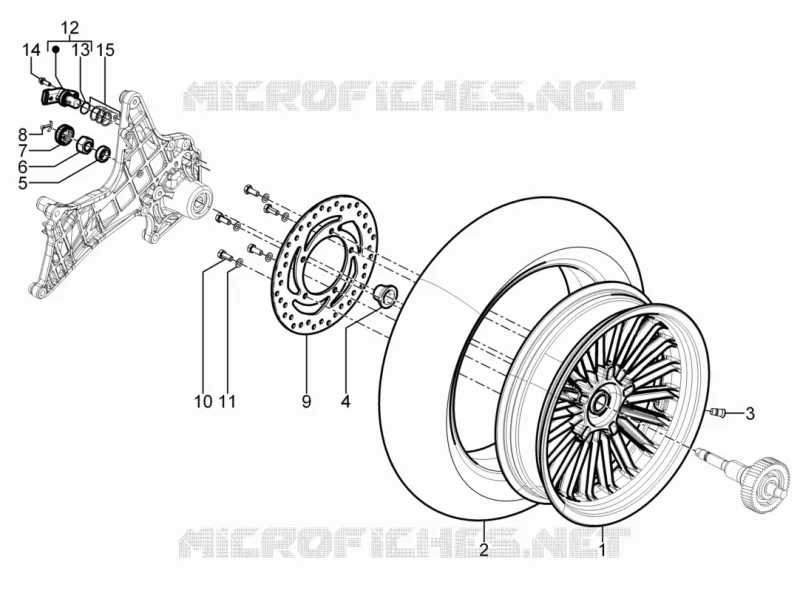

Rear wheel
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
Rear wheel 3,50x14"
58524R
$124,26 Unit Price incl. VAT
1
Rear wheel
1C000185
Not Available
2
Tyre (Sava) 140/70-14"
666298
Not Available
2
(Michelin) Tyre 140/70-14"
666297
Not Available
3
Tubeless valve
597679
$3,03 Unit Price incl. VAT
4
Wheel spacer
848039
$18,12 Unit Price incl. VAT
5
Spacer
597528
$1,51 Unit Price incl. VAT
6
Nut M16x13
563728
$1,42 Unit Price incl. VAT
7
Nut hold cap
194423
$0,48 Unit Price incl. VAT
8
Split pin
012789
$0,16 Unit Price incl. VAT
9
Brake disc
58547R
Not Available
10
Hex screw M8x22
031119
$3,65 Unit Price incl. VAT
11
Spring washer
709047
$0,08 Unit Price incl. VAT
12
Phase/revolution sensor
832963
Not Available
13
O-ring
430044
$0,29 Unit Price incl. VAT
14
Screw w/ flange M6x16
B016777
$0,16 Unit Price incl. VAT
15
Spacer for timing sensor
646760
$3,65 Unit Price incl. VAT

Find the detailed Rear wheel GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
