1
Engine displacement
125
2
Model
BEVERLY
3
Year
2015
4
Trim
Beverly RST 4T 4V ie E3
5
Parts Catalog
Driving pulley
6
Parts Diagram
Parts Catalog
Oil pump
by
Cooling system
Driving pulley
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
Half-pulley assy., driving
CM144403
$101,25 Unit Price incl. VAT
2
6 rollers kit 7,4 g
CM1038045
$23,36 Unit Price incl. VAT
3
Roller contrast
842204
$8,31 Unit Price incl. VAT
4
Sliding block
4348555
$0,51 Unit Price incl. VAT
5
Spacer
483889
$19,92 Unit Price incl. VAT
6
Fixed driving half pulley
876921
$20,68 Unit Price incl. VAT
7
Plain washer
831363
$1,18 Unit Price incl. VAT
8
Flat washer 12.1x36x2
840533
$1,60 Unit Price incl. VAT
9
Belleville spring
880950
$2,69 Unit Price incl. VAT
10
Nut M12x1.25
486324
$0,50 Unit Price incl. VAT
11
V-belt
842009
$82,35 Unit Price incl. VAT
12
Toothed pulley
833989
$17,10 Unit Price incl. VAT
13
Bearing
82843R
Not Available
14
Special screw
829326
$3,70 Unit Price incl. VAT

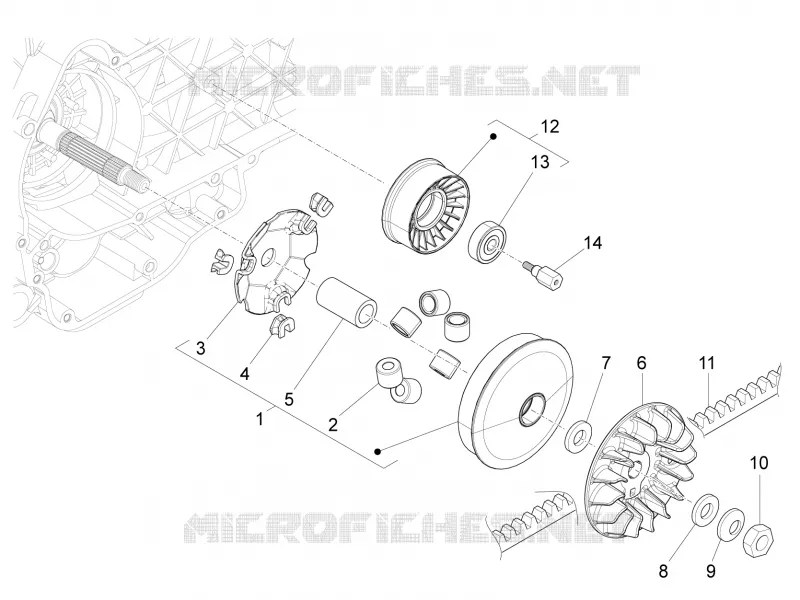

Find the detailed Driving pulley GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
