Rear luggage rack for GILERA PIAGGIO VESPA Beverly E3 from 2008

Rear luggage rack

1

Luggage rack

6235250095

Not Available

2

VITE

015792

$0,51 Unit Price incl. VAT

3

RONDELLA ELASTICA CON DENTATURA

012540

$0,08 Unit Price incl. VAT

4

ROSETTA PIANA SEMILAVORATA

003038

$0,25 Unit Price incl. VAT

5

PIASTRINA ELASTICA

575268

$1,19 Unit Price incl. VAT

6

VITE A TESTA ESAGONALE GAMBO FILETTATO

031120

$0,42 Unit Price incl. VAT

7

COPERCHIO PORTAPACCHI

623358000C

$25,82 Unit Price incl. VAT

8

SUPPORTO ANTIFURTO

623523

$23,22 Unit Price incl. VAT

9

Self tapping screw

270723

Not Available

10

Hook

623526

$58,72 Unit Price incl. VAT

11

CLIPS S00651000

006510

$3,68 Unit Price incl. VAT

12

RONDELLA PIANA METALLICA

013880

$0,08 Unit Price incl. VAT

13

VITE A TESTA CILINDRICA M6X12

122675

$2,99 Unit Price incl. VAT

14

VITE A STRAPPO M6 H10

319195

$3,65 Unit Price incl. VAT

15

Pad

623610

$5,38 Unit Price incl. VAT

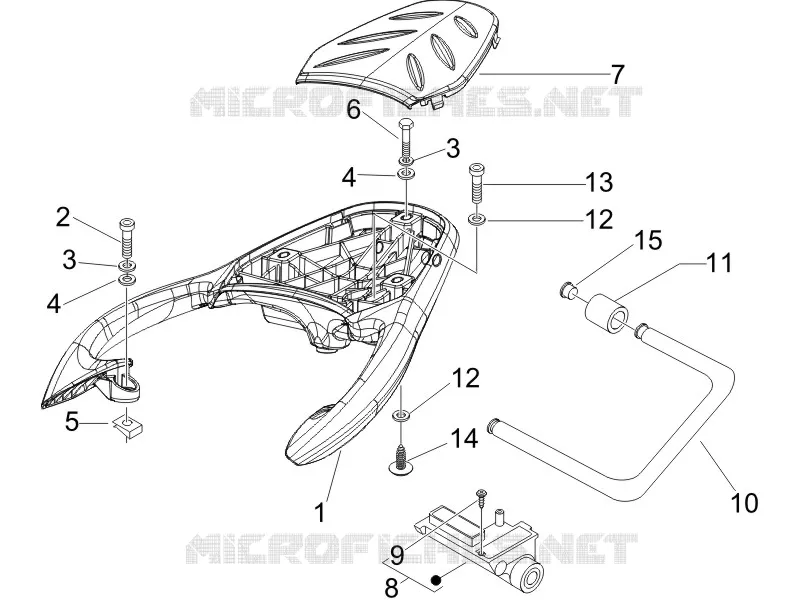

Find the detailed Rear luggage rack GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
