1
Engine displacement
125
2
Model
BEVERLY
3
Year
2005
4
Trim
Beverly
5
Parts Catalog

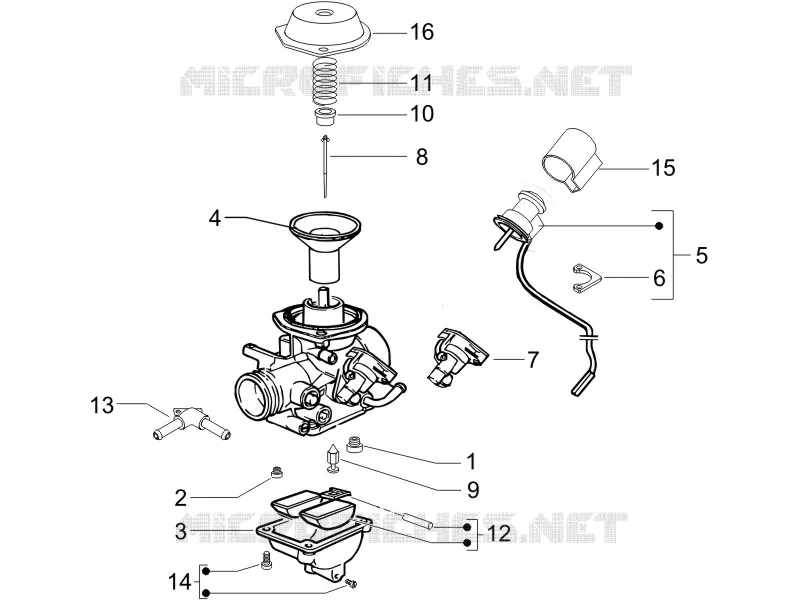

Carburetor's components
6
Parts Diagram
Parts Catalog
Carburettor, assembly - Union pipe
by
Air filter
Carburetor's components
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
1
Main jet
CM129912
$14,89 Unit Price incl. VAT
2
Idle jet 35
CM140101
$10,35 Unit Price incl. VAT
3
Float chamber kit
842523
$10,95 Unit Price incl. VAT
4
Diaphragm keihin
CM140301
$130,56 Unit Price incl. VAT
5
Complete automatic starter
CM142905
Not Available
6
Plate
828843
$3,03 Unit Price incl. VAT
7
Starter device
842519
$27,50 Unit Price incl. VAT
8
Conical pin
CM140204
$19,71 Unit Price incl. VAT
9
Petrol needle
828831
Not Available
9
Hose clamp
260918
$1,68 Unit Price incl. VAT
10
Cup
842518
$4,82 Unit Price incl. VAT
11
Valve gas return spring
CM140902
$14,18 Unit Price incl. VAT
12
Float chamber
CM140401
Not Available
12
Complete reservoir
CM156707
Not Available
12
Complete reservoir
CM140404
Not Available
13
Heater
842516
$29,77 Unit Price incl. VAT
14
Float kit
842522
$24,62 Unit Price incl. VAT
15
Cap
828844
$16,84 Unit Price incl. VAT
16
Cover
842515
Not Available
17
Diffuser
CM144602
$21,26 Unit Price incl. VAT
17
Acceleration pump kit
CM149504
Not Available
18
Adj.min.eng.speed air screw
CM149401
$12,36 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
