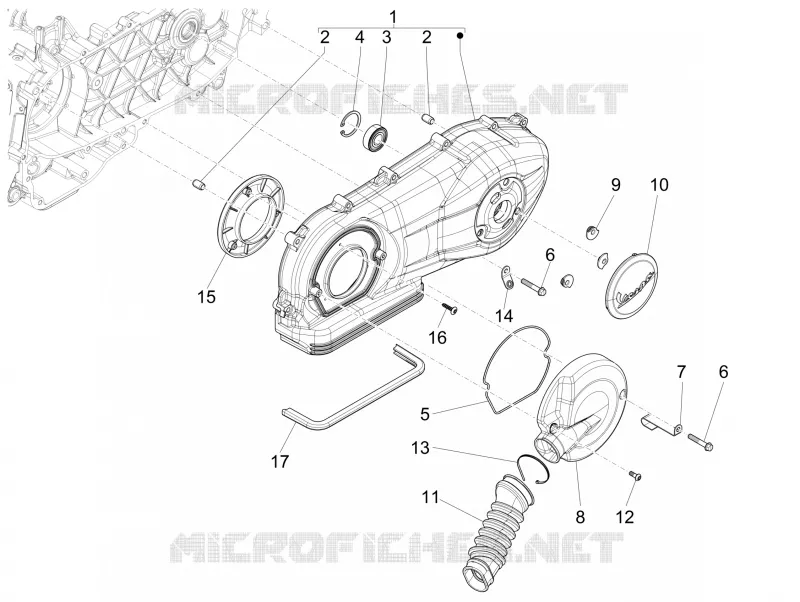

Crankcase cover - Crankcase cooling
1
2
2
3
4
5
6
6
7
8
9
10
11
12
13
14
15
16
17
1
Transmission cover cpl.
B0183175
Not Available
2
Pin d.9,5 h=15
B015956
$0,75 Unit Price incl. VAT
3
Radial bearing 15x35x11
83057R
$7,02 Unit Price incl. VAT
4
Snap ring
006635
$0,25 Unit Price incl. VAT
5
Cooling system cover gasket
1A000874
$4,82 Unit Price incl. VAT
6
screw M6x35
1A000348
$2,25 Unit Price incl. VAT
7
Hose clamp
668643
$4,36 Unit Price incl. VAT
8
Cooling Cover
1A001147
$12,45 Unit Price incl. VAT
9
Retainer buffer
B016983
Not Available
10
"""Vespa"" transmission small cover"
CM166001
$11,34 Unit Price incl. VAT
11
Bellows
1B001009
$14,30 Unit Price incl. VAT
12
Hex socket screw M5x14
B016455
$0,34 Unit Price incl. VAT
13
Hose clamp
709519
$5,38 Unit Price incl. VAT
14
Hose clamp
844964
$0,25 Unit Price incl. VAT
15
Internal spacer
B018051
$1,10 Unit Price incl. VAT
16
Self tapping screw 3,8x10
B018060
$0,11 Unit Price incl. VAT
17
Cover gasket
B015067
$5,21 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
