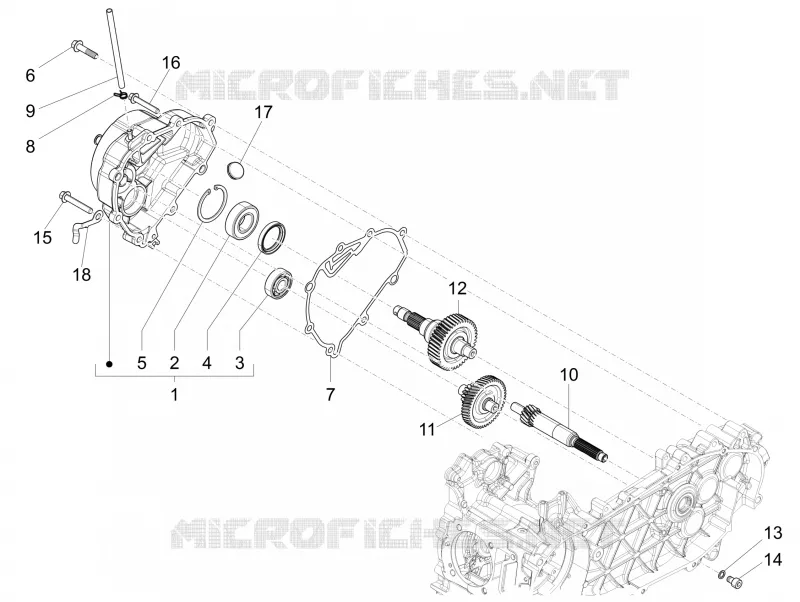

Reduction unit
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
Reducer cover with i.p.
B0162665
$96,83 Unit Price incl. VAT
2
Radial bearing 25x52x15
83056R
$12,69 Unit Price incl. VAT
3
Radial bearing 15x42x13
83026R
$4,46 Unit Price incl. VAT
4
Gasket ring 35x47x7
B015623
$5,90 Unit Price incl. VAT
5
Snap ring 52x56,2x2
B016556
$3,65 Unit Price incl. VAT
6
screw M8x35
B016554
Not Available
7
Reduction unit cover gasket
B016456
$3,11 Unit Price incl. VAT
8
Hose clamp
CM002908
$0,34 Unit Price incl. VAT
9
Reduction unit breather pipe assembly
B018670
$10,00 Unit Price incl. VAT
10
Driven pulley shaft z 15
B0184105
Not Available
11
Transmission shaft
1A0004105
$91,21 Unit Price incl. VAT
12
Rear wheel axle
8270905
Not Available
13
Washer 8.2x12x1
485703
$0,16 Unit Price incl. VAT
14
Hex socket screw M8x12
269755
$0,34 Unit Price incl. VAT
15
Screw w/ flange M8x50
1A000319
Not Available
16
Screw w/ flange M8x30
B019024
Not Available
17
Dust gaiter cover
1A000004
$1,09 Unit Price incl. VAT
18
Plate
1A001437
$6,30 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
