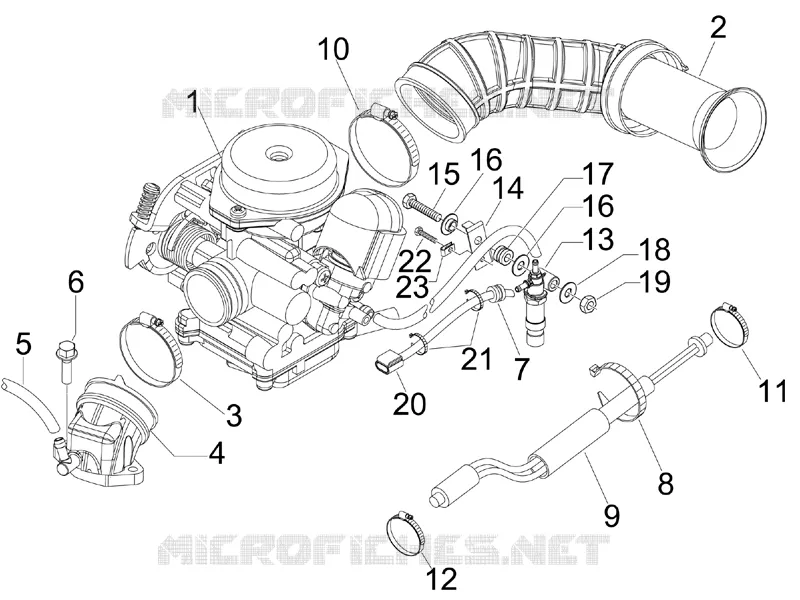

Carburettor, assembly - Union pipe
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
17
18
19
20
21
22
23
1
Carburettor keihin NCV20 AR8
CM158005
$819,45 Unit Price incl. VAT
2
Air cleaner sleeve
848680
$12,45 Unit Price incl. VAT
3
Hose clamp
709532
Not Available
4
Union
845737
$22,76 Unit Price incl. VAT
5
pipe I.700
CM027909
$4,82 Unit Price incl. VAT
6
Hex screw M6x20
018639
$0,16 Unit Price incl. VAT
7
Fairlead
573052
$4,32 Unit Price incl. VAT
8
Lock-strap L=277
257134
$0,25 Unit Price incl. VAT
9
Resistor Module
82961R
Not Available
10
Hose clamp
709532
Not Available
11
Hose clamp
CM002904
$0,42 Unit Price incl. VAT
12
Hose clamp
CM002901
$0,09 Unit Price incl. VAT
13
Solenoid
873270
$84,94 Unit Price incl. VAT
14
Bracket
641290
$20,60 Unit Price incl. VAT
15
Screw w/ flange M5x16
830061
$0,34 Unit Price incl. VAT
16
T bush
843213
$0,75 Unit Price incl. VAT
17
Fairlead
487665
$0,84 Unit Price incl. VAT
18
Plain washer 12x5.2x1
006078
$0,08 Unit Price incl. VAT
19
Nut
012112
$0,29 Unit Price incl. VAT
20
Instrument support
639632
$5,45 Unit Price incl. VAT
21
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
22
Hex screw
030039
$3,70 Unit Price incl. VAT
23
Spring plate M5
248419
$0,67 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
