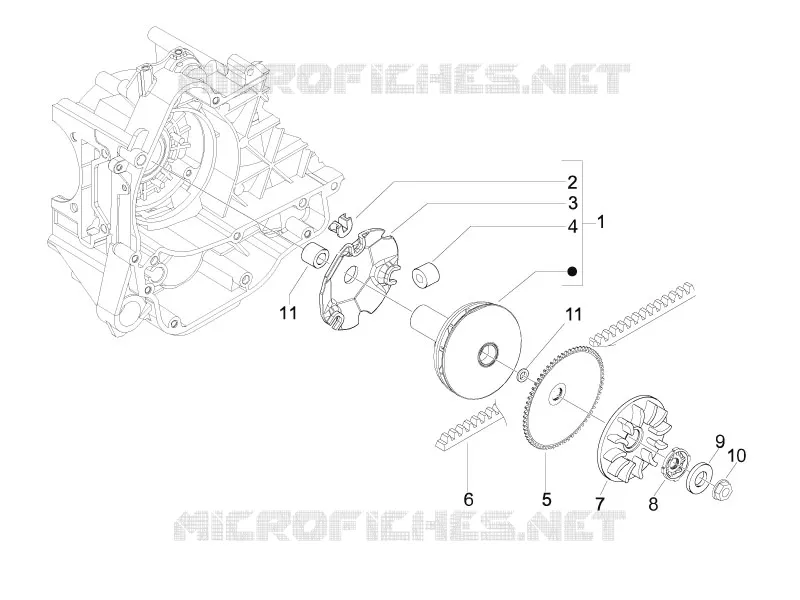

Driving pulley
1
2
3
4
5
6
7
8
9
10
11
11
1
Half-pulley assy., driving
CM110304
$71,24 Unit Price incl. VAT
2
Sliding block
289931
$4,82 Unit Price incl. VAT
3
Roller contrast
480227
$12,88 Unit Price incl. VAT
4
Rollers kit
CM1102035
$23,66 Unit Price incl. VAT
5
Fixed driving half pulley
479561
$12,19 Unit Price incl. VAT
6
V-belt
82645R
Not Available
7
Fan
845611
$2,02 Unit Price incl. VAT
8
Teethed bush
877075
Not Available
8
Toothed bushing
479866
Not Available
9
Washer
265300
$2,99 Unit Price incl. VAT
10
Flanged nut M10x1,25
289519
$0,56 Unit Price incl. VAT
11
Spacer
CM100605
$1,92 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
