1
Engine displacement
50
2
Model
S
3
Year
2012
4
Trim
S 4T 2V 25 Km/h
5
Parts Catalog
Fork/steering tube - Steering bearing unit
6
Parts Diagram
Parts Catalog
Stand/s
by
Secondary air box
Fork/steering tube - Steering bearing unit
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
1
KAYABA cpl. front shock absorber
649458
Not Available
1
Complete front shock absorber
56409R
Not Available
2
Washer
012535
$0,08 Unit Price incl. VAT
3
Nut
021210
$0,16 Unit Price incl. VAT
4
Hex socket screw M8x40
149104
$0,51 Unit Price incl. VAT
5
Pad
174085
$1,18 Unit Price incl. VAT
6
Washer
174088
$0,84 Unit Price incl. VAT
7
Pad
174874
$2,36 Unit Price incl. VAT
8
Spring washer
709047
$0,08 Unit Price incl. VAT
9
Shock absorber connection bracket
601556
$7,73 Unit Price incl. VAT
10
screw
031120
$0,42 Unit Price incl. VAT
11
Spring washer 13,75x8,15x4,5
016408
$0,08 Unit Price incl. VAT
12
Nut M8x6,5
020108
$0,08 Unit Price incl. VAT
13
Arm complete steering tube
648413
Not Available
13
Steering tube complete with arm
6484135
$564,31 Unit Price incl. VAT
14
Left suspension arm
6483975
$109,60 Unit Price incl. VAT
15
Roller cage
198513
$5,97 Unit Price incl. VAT
16
Gasket
006731
$0,34 Unit Price incl. VAT
17
Gasket ring
119219
$0,67 Unit Price incl. VAT
18
Piston pin
177451
$3,03 Unit Price incl. VAT
19
Lower steering bearing
6500754
Not Available
20
Upper thrust ring
6506934
Not Available
21
Steering tube ring nut
011109
Not Available
22
Washer of the steering
003751
$3,65 Unit Price incl. VAT
23
Suspension cover
654268
$6,30 Unit Price incl. VAT
24
Metric screw M6x22
CM179201
$0,34 Unit Price incl. VAT
24
Metric screw TBC
575249
$0,66 Unit Price incl. VAT
25
Spring plate M6
254485
$0,34 Unit Price incl. VAT
26
Front suspension arm cover
561433
Not Available
27
Nut
021114
$0,51 Unit Price incl. VAT
28
Cover
092517
Not Available
29
Cap
177609
$2,19 Unit Price incl. VAT
30
Split pin
012789
$0,16 Unit Price incl. VAT
31
Front wheel hub
560284
Not Available
32
Brake disc
56395R
$21,87 Unit Price incl. VAT
33
Snap ring
006635
$0,25 Unit Price incl. VAT
34
Bearing
177610
$8,41 Unit Price incl. VAT
35
Hex socket screw M6x20
271147
$0,17 Unit Price incl. VAT
36
Front wheel hub
560284
Not Available
37
Ring gear counts Km socket
267818
$33,03 Unit Price incl. VAT
38
Roller cage
177442
$4,04 Unit Price incl. VAT
39
Gasket ring
177443
$1,77 Unit Price incl. VAT
40
O-ring
177408
$0,08 Unit Price incl. VAT
41
Not available
560286
Not Available
42
Ring
177494
$1,85 Unit Price incl. VAT
43
Drawn cap
177436
$9,18 Unit Price incl. VAT
44
Pinion
267819
$7,69 Unit Price incl. VAT
45
screw M5x16
031058
$2,95 Unit Price incl. VAT
46
Washer Ø5,3xØ10x0,5
006975
$0,17 Unit Price incl. VAT
47
Circlip
006422
$0,16 Unit Price incl. VAT
48
Washer
177414
$0,75 Unit Price incl. VAT
49
Ring
177521
$0,66 Unit Price incl. VAT
50
Washer
177445
$0,34 Unit Price incl. VAT

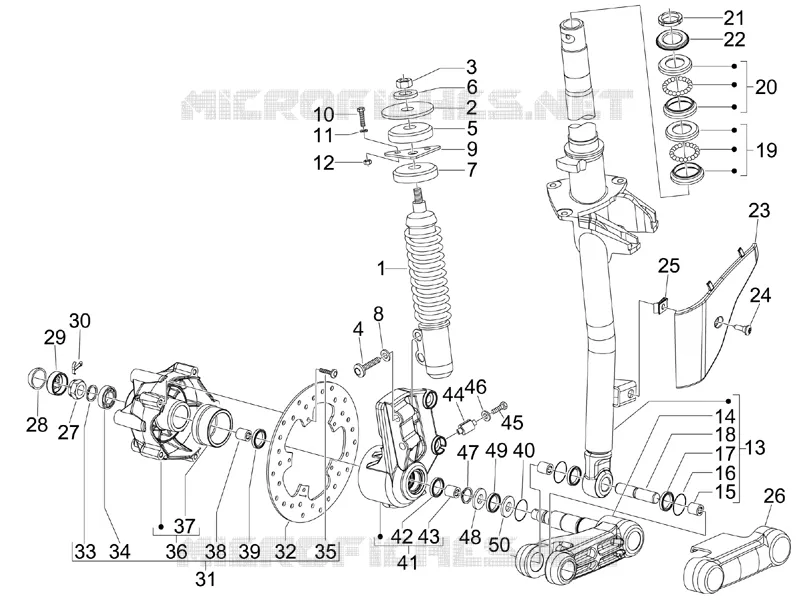

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
