1
Engine displacement
150
2
Model
S
3
Year
2011
4
Trim
S 4T ie E3
5
Parts Catalog
Handlebars - Master cil.
6
Parts Diagram
Parts Catalog
Handlebars coverages
by
Plates - Emblems

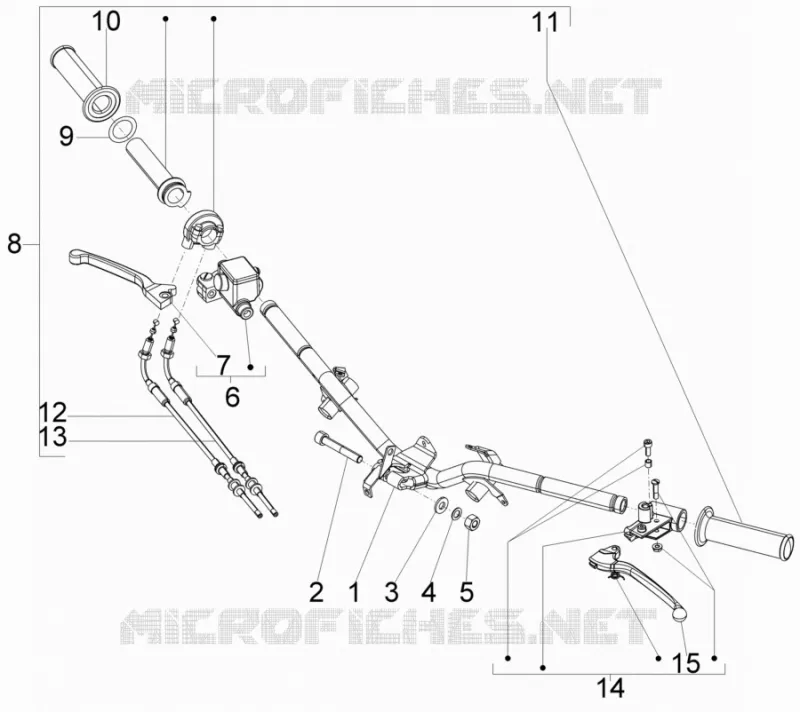

Handlebars - Master cil.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
Handlebar with U.P.
6571164
$66,11 Unit Price incl. VAT
1
Handlebar with U.P.
657116
Not Available
2
Hex socket screw
655554
$3,70 Unit Price incl. VAT
3
Flat washer 18x10,2x2,5
267917
$0,50 Unit Price incl. VAT
4
Flat elastic washer with internal toothing 17x10,3x2
012543
$0,08 Unit Price incl. VAT
5
Nut M10
015330
$0,25 Unit Price incl. VAT
6
(Heng Tong) Brake pump
CM085401
$55,73 Unit Price incl. VAT
7
Brake lever (Heng Tong)
666558
$12,69 Unit Price incl. VAT
8
Throttle control sleeve assembly
668086
$35,59 Unit Price incl. VAT
8
Throttle control sleeve assembly
666613
Not Available
9
Ring
666129
$5,53 Unit Price incl. VAT
10
Grip, r.h.
666132
$4,95 Unit Price incl. VAT
11
Complete left hand grip
666130
Not Available
12
Throttle opening transmission
666614
Not Available
13
Throttle closing transmission
666615
$23,17 Unit Price incl. VAT
14
Left hand grip with rear brake lever
651034
$23,36 Unit Price incl. VAT
15
Rear brake control lever
781120
$21,20 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
