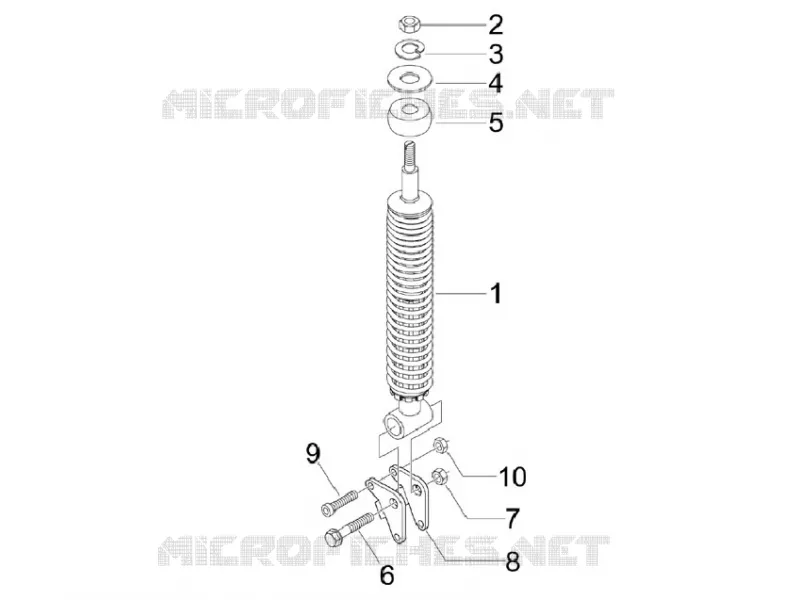

Rear suspension - Shock absorber/s
1
2
3
4
5
6
7
8
9
10
1
Complete rear shock absorber
665767
$63,51 Unit Price incl. VAT
2
Nut M8
021108
$0,25 Unit Price incl. VAT
3
Spring washer 13,75x8,15x4,5
016408
$0,08 Unit Price incl. VAT
4
Flat washer
267038
$0,67 Unit Price incl. VAT
5
Upper buffer
178150
$0,92 Unit Price incl. VAT
6
Screw w/ flange M10
268158
$1,26 Unit Price incl. VAT
7
Self locking nut M10
002440
$0,34 Unit Price incl. VAT
8
Bracket
563324
$16,58 Unit Price incl. VAT
9
Hex socket screw M8x50
844483
$0,67 Unit Price incl. VAT
10
Self locking nut M8
195483
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
