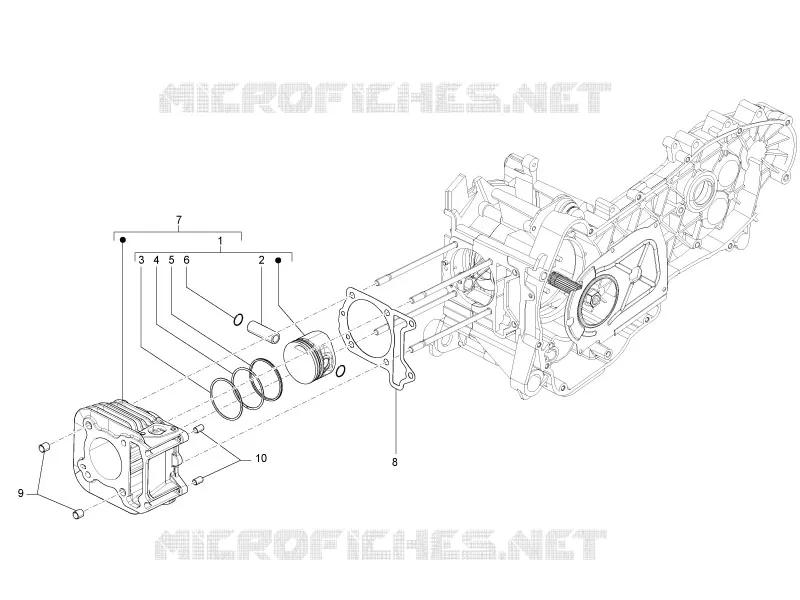

Cylinder-piston-wrist pin unit
1
2
3
4
5
6
7
8
9
10
1
Piston + piston pin Cat.2
8270280002
$87,84 Unit Price incl. VAT
1
Piston + piston pin Cat.3
8270280003
$79,02 Unit Price incl. VAT
1
Piston + piston pin Cat.1
8270280001
Not Available
1
Piston + piston pin Cat.4
8270280004
Not Available
2
Piston pin
482335
$4,92 Unit Price incl. VAT
3
Compression ring Ø62,6x1
486294
Not Available
4
Oil scraper ring Ø62,6x1
486295
Not Available
5
Oil scraper ring Ø62,6x2,5
486355
Not Available
6
Snap ring
963486
$0,05 Unit Price incl. VAT
7
Cylinder-piston-wrist pin assy.
827041
$203,31 Unit Price incl. VAT
8
Cylinder base gasket 0,8 mm
828148
Not Available
8
Cylinder base gasket 0,6 mm
828147
$2,81 Unit Price incl. VAT
8
Cylinder base gasket 0,4 mm
828146
Not Available
9
Locating dowel Ø7,5x12
277916
$0,34 Unit Price incl. VAT
10
Locating dowel
435571
$0,50 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
