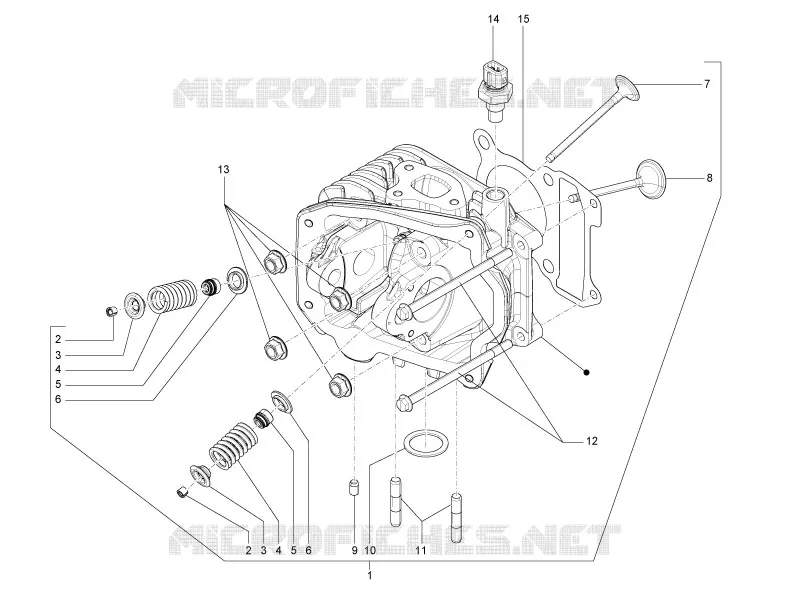

Head unit - Valve
1
2
2
3
3
4
4
5
5
6
6
7
8
9
10
11
12
13
14
15
1
Cylinder head assembly
874755
$163,35 Unit Price incl. VAT
2
Valve half-cone
285846
$2,94 Unit Price incl. VAT
3
Upper cap
483914
$0,91 Unit Price incl. VAT
4
Valve spring
483915
$3,05 Unit Price incl. VAT
5
Valve gasket ring
436438
$1,34 Unit Price incl. VAT
6
Lower cap
483711
$1,35 Unit Price incl. VAT
7
Exhaust valve
877137
$52,26 Unit Price incl. VAT
8
Intake valve
483706
$7,31 Unit Price incl. VAT
9
Plug M6x10
842360
$0,75 Unit Price incl. VAT
10
Big end-silencer gasket
434716
$1,35 Unit Price incl. VAT
11
Stud bolt M7
435629
$0,67 Unit Price incl. VAT
12
Screw w/ flange
485603
$0,68 Unit Price incl. VAT
13
Nut M8x1,25
411296
$0,50 Unit Price incl. VAT
14
Temp. Sensor
875168
$76,85 Unit Price incl. VAT
15
Cylinder head gasket
82682R
$4,82 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
