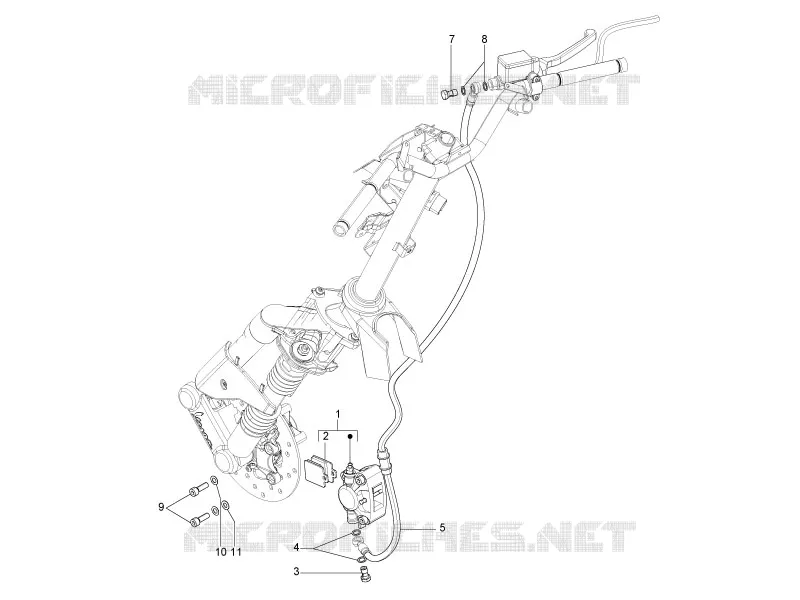

Brakes pipes - Calipers
1
2
3
4
5
7
8
9
10
11
1
Caliper (Heng Tong)
CM065704
$130,95 Unit Price incl. VAT
2
(Heng Tong) Brake pads couple
651356
$29,03 Unit Price incl. VAT
3
Oil pipe screw M10x18
265451
$9,25 Unit Price incl. VAT
4
Gasket
127927
$0,25 Unit Price incl. VAT
5
Rear brake hydraulic piping
649871
$38,42 Unit Price incl. VAT
7
Oil pipe screw M10x18
265451
$9,25 Unit Price incl. VAT
8
Gasket
127927
$0,25 Unit Price incl. VAT
9
screw
271596
$0,34 Unit Price incl. VAT
10
Spring washer
709047
$0,08 Unit Price incl. VAT
11
Flat washer 15x8,4x1,5
003058
$0,08 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
