by

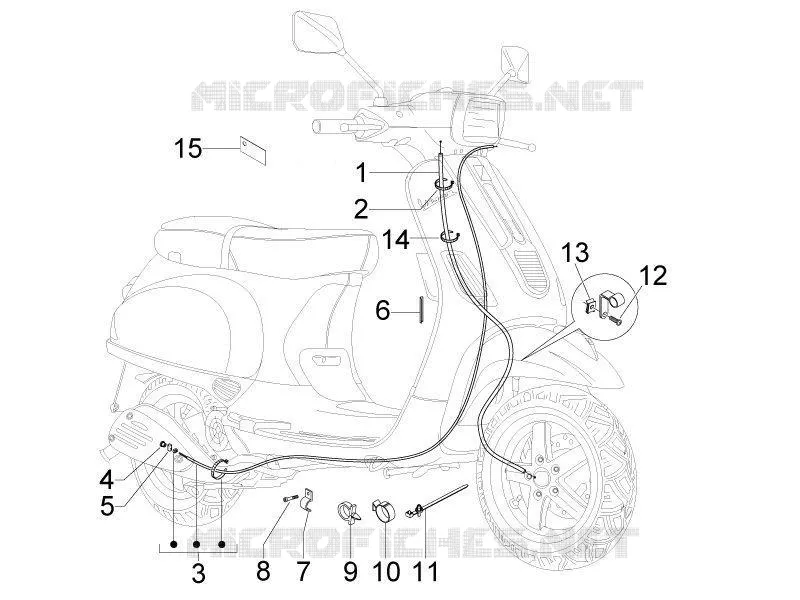

Transmissions
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
Complete Transmission odometer
650836
$19,17 Unit Price incl. VAT
2
Lock-strap L=277
257134
$0,25 Unit Price incl. VAT
3
Rear brake lever complete transmission
665844
$41,85 Unit Price incl. VAT
4
Registro freno posteriore
270310
$1,68 Unit Price incl. VAT
5
Adjuster pin
179640
$1,09 Unit Price incl. VAT
6
Guard 45 mm
CM077701
$4,32 Unit Price incl. VAT
7
Plate
564645
$3,65 Unit Price incl. VAT
8
Hex socket screw M6x20
709674
$0,17 Unit Price incl. VAT
9
Pipes/cables retainer spring
CM006913
$5,38 Unit Price incl. VAT
10
Pipes/cables retainer spring
CM013202
$1,10 Unit Price incl. VAT
11
Hose clamp
298729
$0,34 Unit Price incl. VAT
12
Self tapping screw 4,2x16
015911
$2,25 Unit Price incl. VAT
13
Plate
CM017408
$0,25 Unit Price incl. VAT
14
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
15
Guard
666117
$6,15 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
