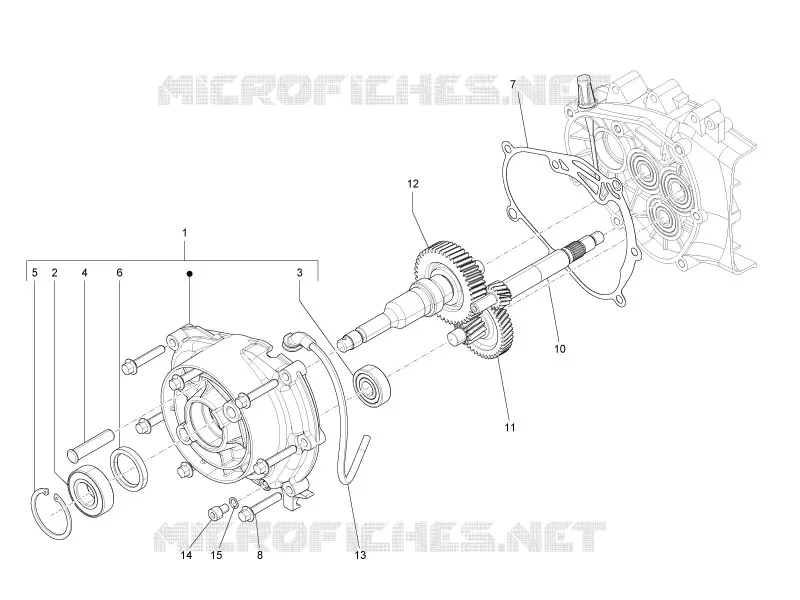

Reduction unit
1
2
3
4
5
6
7
8
10
11
12
13
14
15
1
Side cover
8460265
Not Available
2
Radial bearing 25x52x15
478984
$14,08 Unit Price incl. VAT
3
Radial ball bearing 15x42x13
485912
Not Available
4
Shoe fulcrum pin
272921
$5,45 Unit Price incl. VAT
5
Snap ring
006652
$0,76 Unit Price incl. VAT
6
Gasket ring
82899R
$11,66 Unit Price incl. VAT
7
Reduction unit cover gasket
847930
$8,78 Unit Price incl. VAT
8
Screw w/ flange M8x45
487211
$0,29 Unit Price incl. VAT
10
Driven pulley shaft
8738745
Not Available
11
Transmission shaft
4858915
Not Available
12
Rear wheel axle
4859095
$155,64 Unit Price incl. VAT
13
Reduction unit breather pipe assembly
CM162202
$24,21 Unit Price incl. VAT
14
Hex socket screw M8x12
269755
$0,34 Unit Price incl. VAT
15
Washer 8.2x12x1
485703
$0,16 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
