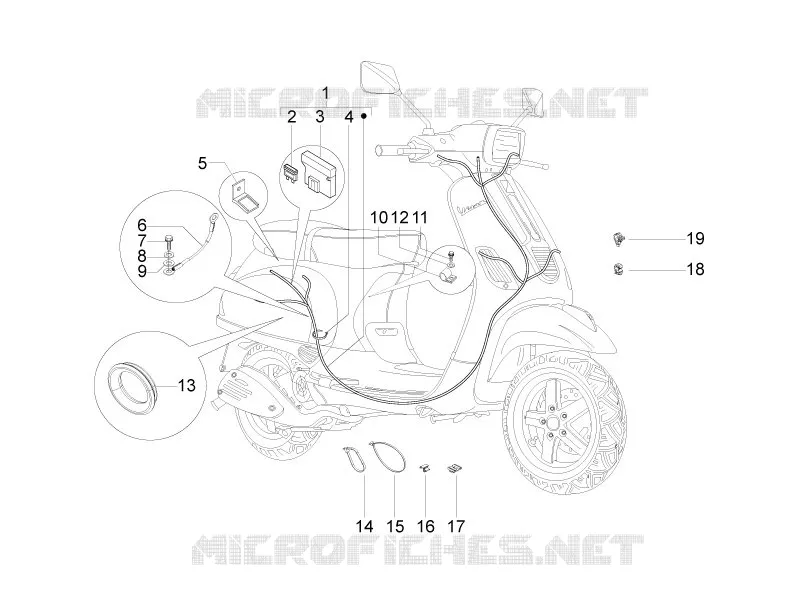

Main cable harness
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
Cable harness
641949
$522,45 Unit Price incl. VAT
2
Fuse 20A
580561
$0,42 Unit Price incl. VAT
2
Fuse 7,5A
252945
$0,42 Unit Price incl. VAT
2
Fuse 15A
290860
$5,73 Unit Price incl. VAT
2
Reed fuse 10A
292507
$0,42 Unit Price incl. VAT
3
Fuse holder
580653
$35,69 Unit Price incl. VAT
4
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
5
Fusebox bracket
639154
Not Available
6
Earth braid
581309
$3,49 Unit Price incl. VAT
7
Tri/lobed hexagonal self-tapping screw
641204
$0,34 Unit Price incl. VAT
8
Spring washer 6,4x11,8x1
016406
$0,34 Unit Price incl. VAT
9
Flat washer 6,4x12x1
003056
$0,08 Unit Price incl. VAT
10
Hose clamp
638792
$4,82 Unit Price incl. VAT
11
Screw M5x15
873653
$0,92 Unit Price incl. VAT
12
Washer
012528
$0,34 Unit Price incl. VAT
13
Fairlead
294754
$0,51 Unit Price incl. VAT
14
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
15
Lock-strap L=277
257134
$0,25 Unit Price incl. VAT
16
Connector spring
584520
$5,38 Unit Price incl. VAT
17
Spring for connector
641769
$2,27 Unit Price incl. VAT
18
Spring
CM013201
$0,40 Unit Price incl. VAT
19
Molletta
CM006910
$0,25 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
