Front glove-box - Knee-guard panel for S 4T ie College from 2013

Front glove-box - Knee-guard panel

1

Counter shield

67495400NL

Not Available

1

Counter shield

654256

Not Available

1

Counter shield

67495400EZ

Not Available

1

Painted leg shield back plate

6749540090

$503,36 Unit Price incl. VAT

1

Counter shield

65425600AH

$411,14 Unit Price incl. VAT

1

Painted leg shield back plate

67495400R7

Not Available

1

Painted leg shield back plate

67495400DI

Not Available

1

Painted leg shield back plate

67495400BR

Not Available

1

Painted leg shield back plate

67495400AI

$503,36 Unit Price incl. VAT

2

Left glovebox

65429400R7

$51,49 Unit Price incl. VAT

2

Left glovebox

6542940090

$51,49 Unit Price incl. VAT

2

Left glovebox

654294

$41,80 Unit Price incl. VAT

2

Left glovebox

65429400AH

$51,49 Unit Price incl. VAT

2

Left glovebox

65429400BR

Not Available

2

Left glovebox

65429400EZ

$51,49 Unit Price incl. VAT

2

Left glovebox

65429400DI

Not Available

2

Left glovebox

65429400AI

$51,49 Unit Price incl. VAT

2

Left glovebox

65429400NL

Not Available

3

Right glovebox

65429500NL

$51,49 Unit Price incl. VAT

3

Right glovebox

65429500AH

$51,49 Unit Price incl. VAT

3

Right glovebox

65429500EZ

$51,49 Unit Price incl. VAT

3

Right glovebox

65429500AI

$51,49 Unit Price incl. VAT

3

Right glovebox

65429500DI

$51,49 Unit Price incl. VAT

3

Right glovebox

65429500BR

$51,49 Unit Price incl. VAT

3

Right glovebox

6542950090

Not Available

3

Right glovebox

654295

$41,80 Unit Price incl. VAT

3

Right glovebox

65429500R7

$51,49 Unit Price incl. VAT

4

Self tapping screw

297498

$0,08 Unit Price incl. VAT

5

Bag holder hook

575819

$12,88 Unit Price incl. VAT

6

Self tapping screw D4.2x13

CM178603

$0,16 Unit Price incl. VAT

7

Self tapping screw D4.2x16

CM178601

$0,16 Unit Price incl. VAT

8

Spring plate

CM017409

$0,08 Unit Price incl. VAT

9

Screw w/ flange

AP8152338

$3,65 Unit Price incl. VAT

10

Spring plate M5

248419

$0,67 Unit Price incl. VAT

11

Packing

654297

$5,38 Unit Price incl. VAT

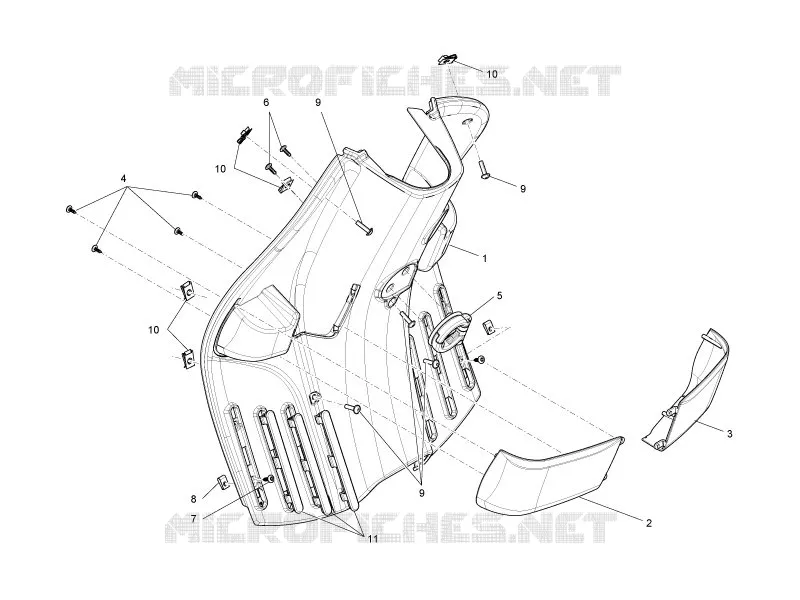

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
