Front headlamps - Turn signal lamps for S 4T ie College from 2011

Rear suspension - Shock absorber/s

Throttle body - Injector - Union pipe

Front headlamps - Turn signal lamps

1

Reflector, assy.

640874

$126,02 Unit Price incl. VAT

2

Lamp H4 12V-60/55W

292723

$10,39 Unit Price incl. VAT

3

Complete headlight support

654890

$19,68 Unit Price incl. VAT

4

Headlight spacer

654301

$3,65 Unit Price incl. VAT

7

TBCIC Screw

270793

$0,08 Unit Price incl. VAT

8

Headlight support clamp

654271

$7,23 Unit Price incl. VAT

9

Screw m16x16

015558

$3,65 Unit Price incl. VAT

10

Spring washer 12x6,4x0,5

006976

$0,08 Unit Price incl. VAT

11

Junction component

654276

$13,53 Unit Price incl. VAT

12

TBCIC Screw M5x12

015935

$4,82 Unit Price incl. VAT

13

Washer 5.3x10x10

006965

$0,08 Unit Price incl. VAT

14

Adjuster block

640800

$4,82 Unit Price incl. VAT

15

Adjusting pin

640801

$5,38 Unit Price incl. VAT

16

Gasket

654876

$34,73 Unit Price incl. VAT

17

Fr. turn sig.lamp

639296

Not Available

18

Bulb 12V-5W

181747

Not Available

19

Fr. turn sig.lamp

639297

$18,86 Unit Price incl. VAT

20

Bulb 12V-5W

181747

Not Available

21

Self-tap screw M4,2x19

008457

$2,99 Unit Price incl. VAT

22

Plate

CM017406

$3,65 Unit Price incl. VAT

23

Front left turn indicator

639101

Not Available

25

Lamp 12V-10W

181746

$3,28 Unit Price incl. VAT

26

Front right turn indicator

639102

Not Available

28

Lamp 12V-10W

181746

$3,28 Unit Price incl. VAT

29

Left turn indicator support

640923

$8,91 Unit Price incl. VAT

30

Right turn indicator support

640924

$8,91 Unit Price incl. VAT

31

screw

842041

$0,08 Unit Price incl. VAT

32

Plain washer 12x5.2x1

006078

$0,08 Unit Price incl. VAT

33

Plain washer 5,4x10x0,8

003055

$0,08 Unit Price incl. VAT

34

Nut

012112

$0,29 Unit Price incl. VAT

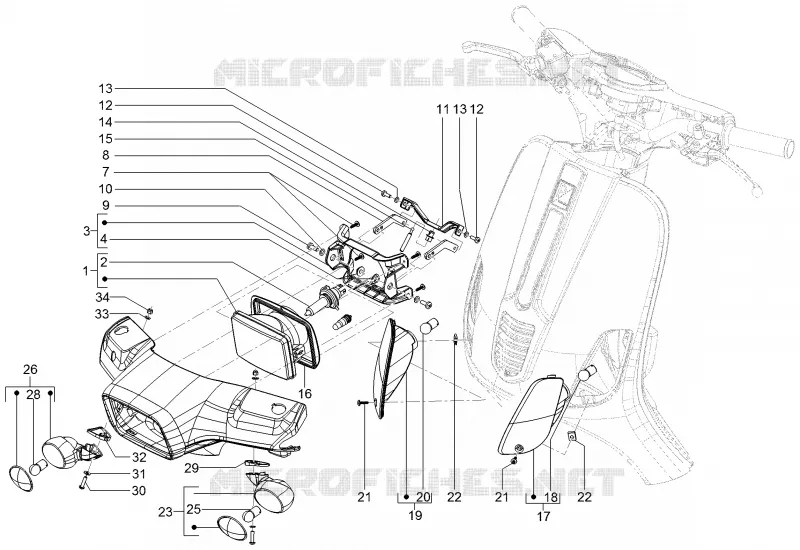

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
