1
Engine displacement
125
2
Model
S
3
Year
2016
4
Trim
S 4T 3V E3 ie
5
Parts Catalog

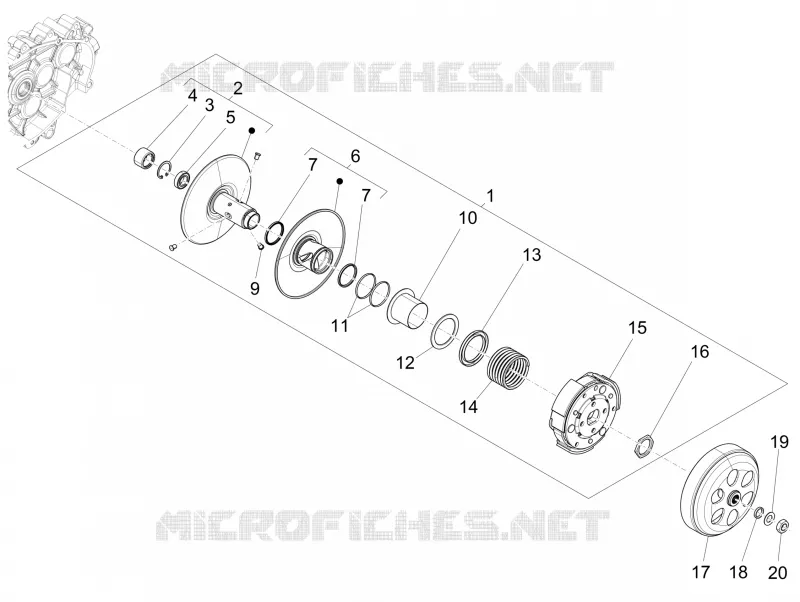

Driven pulley
6
Parts Diagram
Parts Catalog
Cylinder head cover
by
Front shield
Driven pulley
1
2
3
4
5
6
7
7
9
10
11
12
13
14
15
16
17
18
19
20
1
Driven pulley complete with clutch
B016907
Not Available
1
Driven pulley complete with clutch
1A002526
$117,81 Unit Price incl. VAT
2
Complete fixed driven half-pulley
B018252
$38,93 Unit Price incl. VAT
3
Ring
006624
$2,99 Unit Price incl. VAT
4
Roller cage 20x26x14
B018426
$16,40 Unit Price incl. VAT
5
Radial ball bearing
B018251
$10,69 Unit Price incl. VAT
6
Adjustable pulley, half
B018461
Not Available
6
Adjustable pulley, half
B019313
$49,94 Unit Price incl. VAT
7
Gasket ring
B016919
$3,19 Unit Price incl. VAT
9
Clutch bush pin
B016921
$1,65 Unit Price incl. VAT
10
Pulley side cap
B016922
$3,68 Unit Price incl. VAT
10
Pulley side cap
B019184
$6,05 Unit Price incl. VAT
11
O-Ring seal ring
B016920
$1,05 Unit Price incl. VAT
12
Sliding washer
B019185
Not Available
13
Spring seat
B019186
Not Available
14
Variator spring
B016923
$5,34 Unit Price incl. VAT
14
Variator spring
B019193
$6,66 Unit Price incl. VAT
15
Complete centrifugal clutch assembly
B016913
$60,04 Unit Price incl. VAT
15
Complete centrifugal clutch assembly
1A002527
$92,75 Unit Price incl. VAT
16
Ring nut
289955
$8,58 Unit Price incl. VAT
17
Clutch drum
B016908
Not Available
18
Spacer
B017653
$2,76 Unit Price incl. VAT
19
Flat washer 22x12,1x1
274246
$0,34 Unit Price incl. VAT
20
Nut
B016992
$0,50 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
