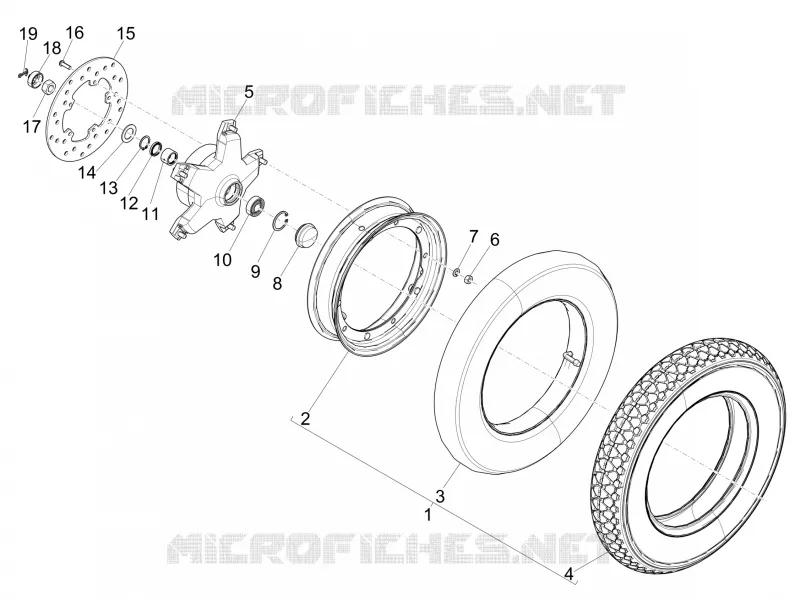

Front wheel
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
Wheel
597452
Not Available
2
Wheel rim, assy.
0846315
$98,55 Unit Price incl. VAT
3
Inner tube 3,50 x 10’’
650028M
$17,69 Unit Price incl. VAT
4
Tyre
1R000083
Not Available
4
Savatech 3.5x10" tyre
668714
Not Available
5
Brake drum
1C002465
Not Available
5
Brake drum
563762
$249,60 Unit Price incl. VAT
6
Nut M8
020008
$0,08 Unit Price incl. VAT
7
Spring washer
667059
$0,47 Unit Price incl. VAT
8
Cover
1979835
Not Available
9
Snap ring
006635
$0,25 Unit Price incl. VAT
10
Bearing
177610
$8,41 Unit Price incl. VAT
11
Gasket ring
177443
$1,77 Unit Price incl. VAT
12
Gasket ring
177443
$1,77 Unit Price incl. VAT
13
Circlip
006422
$0,16 Unit Price incl. VAT
14
Washer
177414
$0,75 Unit Price incl. VAT
15
Brake disc
56395R
$21,87 Unit Price incl. VAT
16
Hex socket screw M6x20
667152
$0,26 Unit Price incl. VAT
17
Nut
021114
$0,51 Unit Price incl. VAT
18
Cap
177609
$2,19 Unit Price incl. VAT
19
Split pin
012789
$0,16 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
