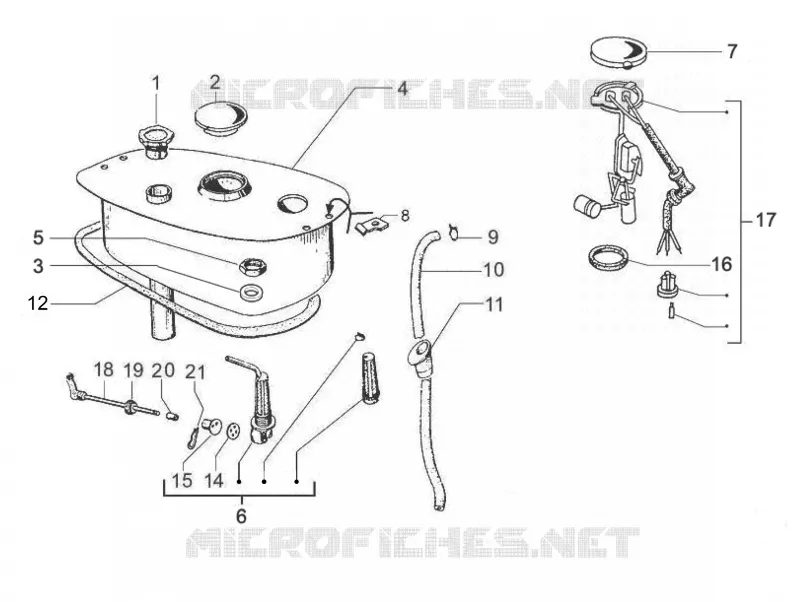

Fuel tank
1
2
3
4
5
6
7
8
9
10
11
12
14
15
16
17
18
19
20
21
1
Oil ins.pl.
102585
$10,76 Unit Price incl. VAT
2
Tank cap
575825
$54,29 Unit Price incl. VAT
3
Decanter unit seal
139933
$5,00 Unit Price incl. VAT
4
Tank
2283725
$205,95 Unit Price incl. VAT
5
Nut
138935
$3,65 Unit Price incl. VAT
6
Cock
217872
$23,36 Unit Price incl. VAT
7
Cover
219002
$6,30 Unit Price incl. VAT
8
Plate
230365
$3,65 Unit Price incl. VAT
9
Hose clamp
CM002910
$0,59 Unit Price incl. VAT
10
pipe
146504
$14,18 Unit Price incl. VAT
11
Cable grommet for fuel pipe
084262
$5,00 Unit Price incl. VAT
12
Gasket
159804
$8,65 Unit Price incl. VAT
14
Gasket
414779
$3,78 Unit Price incl. VAT
15
Plug
046168
$6,15 Unit Price incl. VAT
16
Gasket
228354
$5,38 Unit Price incl. VAT
17
Level indicator
228090
$100,52 Unit Price incl. VAT
18
Rod
217871
$11,69 Unit Price incl. VAT
19
Gasket
194631
$4,32 Unit Price incl. VAT
20
Pipe
083139
$2,95 Unit Price incl. VAT
21
Spring
015467
$2,95 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
