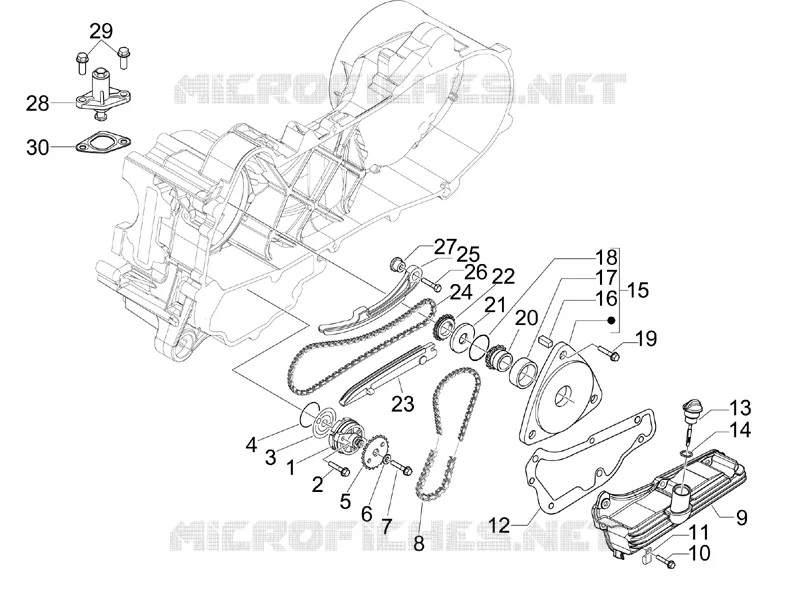

Oil pump
1
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
19
19
20
20
21
21
22
22
23
24
24
25
26
27
28
29
30
1
Oil pump assy.
877262
$19,50 Unit Price incl. VAT
2
Screw w/ flange
433477
$0,19 Unit Price incl. VAT
3
Carter-oil pump gasket
436751
$4,89 Unit Price incl. VAT
4
O-ring 12,42x1
434947
$2,99 Unit Price incl. VAT
5
Oil pump gear
287913
$6,47 Unit Price incl. VAT
6
Belleville spring Ø6,4xØ20x2
436695
$0,59 Unit Price incl. VAT
7
Screw w/ flange M6x14
B016426
$0,42 Unit Price incl. VAT
8
Oil pump chain
434447
$11,51 Unit Price incl. VAT
9
Motor oil cup
844871
$16,21 Unit Price incl. VAT
10
Screw w/ flange M6x25
414837
Not Available
11
Retainer clamp
487824
$0,33 Unit Price incl. VAT
12
Sump gasket
969132
$1,35 Unit Price incl. VAT
13
Oil level rod cpl.
844721
$2,69 Unit Price incl. VAT
14
O-ring
479986
Not Available
15
Timing system cover cpl.
478324
$34,40 Unit Price incl. VAT
16
Oil pump chain drift
434345
$2,77 Unit Price incl. VAT
17
Gasket ring
2879633
$9,33 Unit Price incl. VAT
18
Gasket ring
844888
$3,70 Unit Price incl. VAT
19
Screw w/ flange
484123
$0,16 Unit Price incl. VAT
20
Oil pump control pinion
833495
$361,56 Unit Price incl. VAT
21
Washer
430535
$3,70 Unit Price incl. VAT
22
Timing system chain pinion cpl
969747
Not Available
23
Sliding block
969877
$7,23 Unit Price incl. VAT
24
Camshaft chain
96933R
$42,47 Unit Price incl. VAT
25
Chain tensioner rod
828561
$22,11 Unit Price incl. VAT
26
Hex screw M6x18
031089
$2,99 Unit Price incl. VAT
27
Spacer
478247
Not Available
28
Chain tensioner bracket
289919
Not Available
29
Screw w/ flange M6x14
B016426
$0,42 Unit Price incl. VAT
30
Guarnizione cilindro/tendicatena
847928
$0,42 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
