Handlebars - Master cil. for GILERA PIAGGIO VESPA Primavera 4T-4V from 2014

Handlebars - Master cil.

1

Handlebar with U.P.

1B002544R

$133,27 Unit Price incl. VAT

1

Handlebar with U.P.

673648

$133,27 Unit Price incl. VAT

2

Hex socket screw

668874

$2,95 Unit Price incl. VAT

3

Flat elastic washer with internal toothing 17x10,3x2

012543

$0,08 Unit Price incl. VAT

4

Flat washer 18x10,2x2,5

267917

$0,50 Unit Price incl. VAT

5

Nut M10

015330

$0,25 Unit Price incl. VAT

6

Throttle control sleeve assembly

CM258201

$68,85 Unit Price incl. VAT

7

Grip, r.h.

666845

$8,51 Unit Price incl. VAT

8

Grip, l.h.

666965

$8,51 Unit Price incl. VAT

9

Gas lever transmission

1C000057

$33,03 Unit Price incl. VAT

10

Self tapping screw D4x16

CM180701

$0,16 Unit Price incl. VAT

11

Front brakes pump assembly (Heng Tong)

CM074901

$125,55 Unit Price incl. VAT

12

Brake lever

497042

$18,36 Unit Price incl. VAT

13

Sleeve with rear brake lever

CM063806

$35,10 Unit Price incl. VAT

14

Rear brake control lever

564683

$22,55 Unit Price incl. VAT

15

Screw with bushing

123394

$3,70 Unit Price incl. VAT

16

Screw with nut

265249

$3,70 Unit Price incl. VAT

17

Spring

267948

$4,89 Unit Price incl. VAT

18

Spring

657046

$3,65 Unit Price incl. VAT

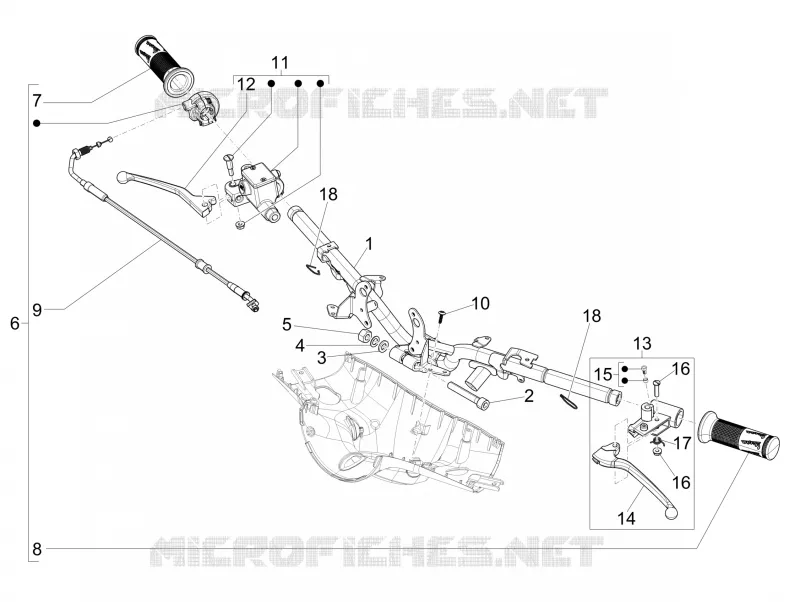

Find the detailed Handlebars - Master cil. GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
