Brakes pipes - Calipers (ABS) for 4T 3V ie Primavera from 2014

Selectors - Switches - Buttons

Throttle body - Injector - Union pipe

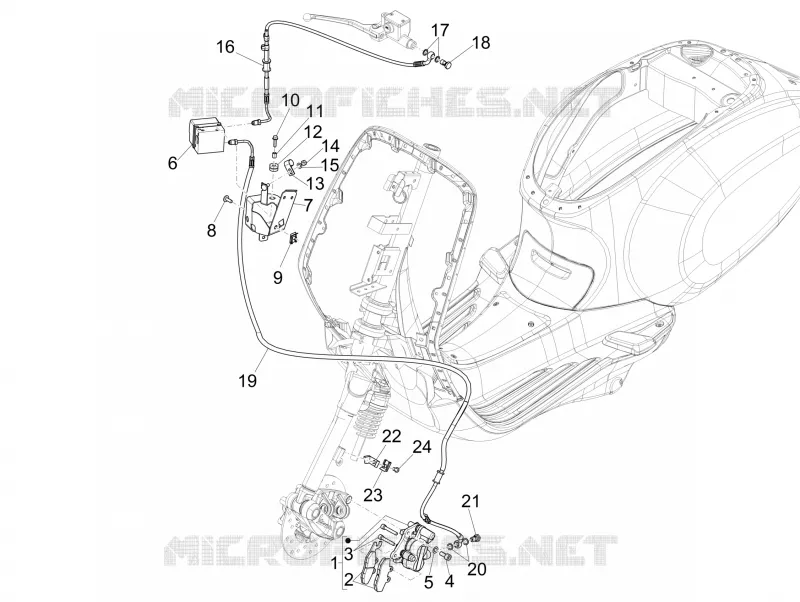

Brakes pipes - Calipers (ABS)

1

Brake caliper Heng Tong

CM068301

Not Available

2

Brake pads couple Heng Tong

647078

$35,62 Unit Price incl. VAT

3

Brake supp. plate pin

666139

$7,56 Unit Price incl. VAT

4

screw

319532

$3,65 Unit Price incl. VAT

5

Spring washer

709047

$0,08 Unit Price incl. VAT

6

ABS electro-hydraulic control unit

1C002557

$827,55 Unit Price incl. VAT

6

ABS electro-hydraulic control unit

1C000833

Not Available

7

Control unit sup. bracket

1C000431

$31,97 Unit Price incl. VAT

8

Screw M6x16

CM179301

$0,25 Unit Price incl. VAT

9

Spring plate M6

254485

$0,34 Unit Price incl. VAT

10

Screw w/ flange M5x20

872269

$3,70 Unit Price incl. VAT

10

screw M5x21

015856

$0,16 Unit Price incl. VAT

11

Spacer

1C000253

$0,34 Unit Price incl. VAT

11

Spacer

1C000870

$0,92 Unit Price incl. VAT

12

Pad

939278

$0,34 Unit Price incl. VAT

13

Hose clamp

675510

$1,80 Unit Price incl. VAT

14

Spring washer 12x6,4x0,5

006976

$0,08 Unit Price incl. VAT

15

Nut M6

020106

$0,08 Unit Price incl. VAT

16

ABS unit - right brake pump pipe

1C000330

Not Available

17

Gasket

127927

$0,25 Unit Price incl. VAT

18

Oil pipe screw M10x18

265451

$9,25 Unit Price incl. VAT

19

Front clamp ABS unit pipe

1C001023R

$43,81 Unit Price incl. VAT

19

Front clamp ABS unit pipe

1C000329

Not Available

20

Gasket

127927

$0,25 Unit Price incl. VAT

21

Oil pipe screw M10x18

265451

$9,25 Unit Price incl. VAT

22

Wiring clip

1C000585

$2,95 Unit Price incl. VAT

23

Spring plate M6

254485

$0,34 Unit Price incl. VAT

24

Hex socket screw M6x12

274369

$0,17 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
