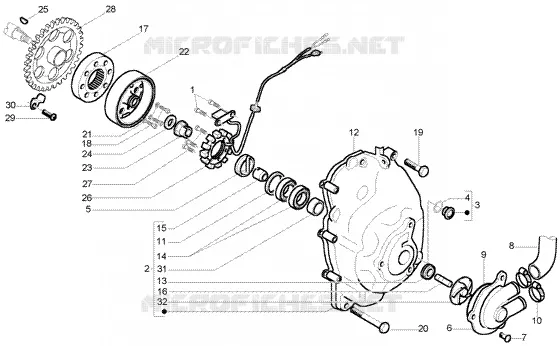

Flywheel magneto
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
1
Screw M5x10
018575
$2,95 Unit Price incl. VAT
2
Flywheel cover
8458285
Not Available
3
Timing plug assembly
8290405
$10,28 Unit Price incl. VAT
4
O-ring
479986
Not Available
5
Drive key
842390
$0,48 Unit Price incl. VAT
6
Water pump cover
486237
$20,60 Unit Price incl. VAT
7
Screw M5x22
828662
$0,25 Unit Price incl. VAT
8
pipe
840468
$8,91 Unit Price incl. VAT
9
O-ring
485080
$0,72 Unit Price incl. VAT
10
Hose clamp
CM001908
$3,65 Unit Price incl. VAT
11
Gasket
842455
Not Available
12
Flywheel housing cover gasket
840504
$2,91 Unit Price incl. VAT
13
Gasket ring
842595
Not Available
14
Bearing 28x8x9
82755R
$14,18 Unit Price incl. VAT
15
Pump impeller drive key
842389
$5,64 Unit Price incl. VAT
16
Water pump shaft assy.
8447595
$54,95 Unit Price incl. VAT
17
Starter clutch assy.
8313225
Not Available
18
Hex socket screw M6x25
840893
$0,41 Unit Price incl. VAT
19
screw M6x35
414838
$0,67 Unit Price incl. VAT
20
screw
844160
Not Available
21
Break washer
479515
$0,08 Unit Price incl. VAT
22
Rotor, assy.
58049R
Not Available
23
Nut
842388
Not Available
24
Plain washer
842385
$0,68 Unit Price incl. VAT
25
Transmission key
000097
$5,21 Unit Price incl. VAT
26
Backplate, assy.
58048R
$75,60 Unit Price incl. VAT
27
Low head socket screw M6x30
122637
$0,28 Unit Price incl. VAT
28
Starter motor gear
82737R
$81,00 Unit Price incl. VAT
29
screw M6x14
008375
$1,55 Unit Price incl. VAT
30
Plate
840532
Not Available
31
Gasket ring
485084
Not Available
32
Water pump impeller cpl.
844730
$3,01 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
