Side cover - Spoiler for GILERA PIAGGIO VESPA LXV 2T Navy from 2008

Side cover - Spoiler

1

Left lower fairing

62212740DE

$96,83 Unit Price incl. VAT

2

Right lower fairing

62212840DE

$96,83 Unit Price incl. VAT

4

Screw M4,2x13

259349

$0,17 Unit Price incl. VAT

5

Expansion plug

199190

$2,95 Unit Price incl. VAT

6

Elastic drift

463195

Not Available

7

Self tapping screw

296141

$0,08 Unit Price incl. VAT

8

Spring plate

CM017410

$0,34 Unit Price incl. VAT

9

Left lateral retroreflector

584083

Not Available

10

Gasket

584995

$4,82 Unit Price incl. VAT

11

Spring plate

181351

$0,17 Unit Price incl. VAT

12

Right lateral retroreflector

584084

$5,49 Unit Price incl. VAT

13

Gasket

584995

$4,82 Unit Price incl. VAT

14

Spring plate

181351

$0,17 Unit Price incl. VAT

15

Right spoiler rear terminal

62213040DE

Not Available

16

Left spoiler rear terminal

62212940DE

Not Available

17

Spoiler cover

620556

Not Available

18

Cover

299557

$0,76 Unit Price incl. VAT

19

Cover

299558

$0,59 Unit Price incl. VAT

20

Cover

299559

$4,82 Unit Price incl. VAT

21

Handle

623572

Not Available

22

Handle plug

623561

$7,23 Unit Price incl. VAT

23

Hex screw M6x22

031091

$0,17 Unit Price incl. VAT

24

Notched washer 6,6x11x0

012533

$0,67 Unit Price incl. VAT

25

Washer

078307

$0,17 Unit Price incl. VAT

26

Spring plate M6

254485

$0,34 Unit Price incl. VAT

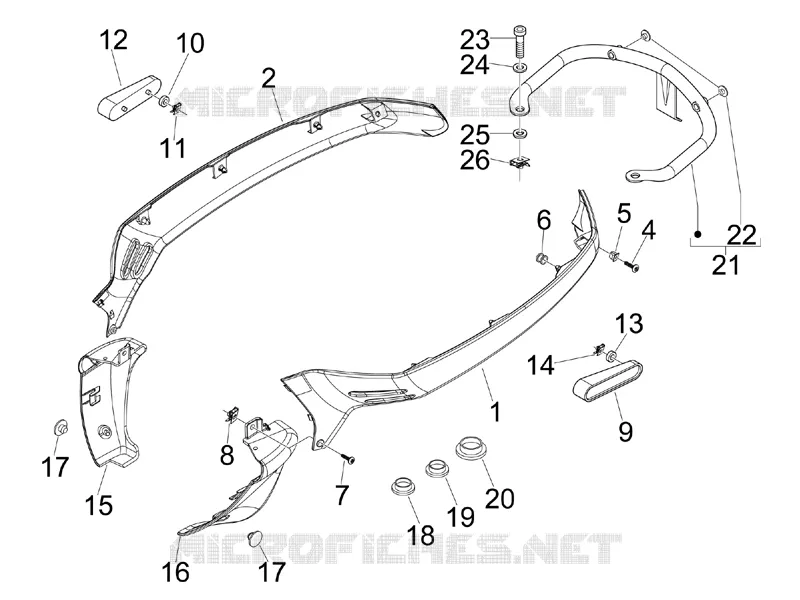

Find the detailed Side cover - Spoiler GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
