1
Engine displacement
50
2
Model
LXV
3
Year
2006
4
Trim
LXV 2T
5
Parts Catalog

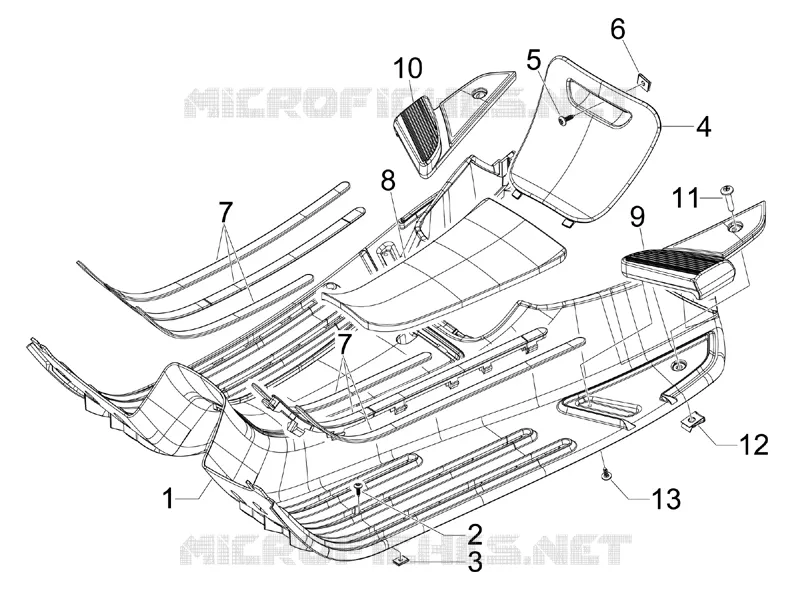

Central cover - Footrests
6
Parts Diagram
Parts Catalog
Front glove-box - Knee-guard panel
by
Side cover - Spoiler
Central cover - Footrests
1
2
3
4
5
6
7
7
8
9
10
11
12
1
Painted footrest
62212440M4
Not Available
1
Footrest
62212440EP
Not Available
1
Painted footrest
62212440VG
Not Available
1
Painted footrest
6221244090
Not Available
2
Self-tap screw
576189
$0,05 Unit Price incl. VAT
2
Self tapping screw D4.2x16
CM178601
$0,16 Unit Price incl. VAT
3
Plate
CM017406
$3,65 Unit Price incl. VAT
4
Spark plug insp. door
62213660EP
$34,52 Unit Price incl. VAT
4
Spark plug insp. door
622136
Not Available
4
Spark plug insp. door
62213600EP
$78,24 Unit Price incl. VAT
4
Spark plug insp. door
62213650VG
$78,24 Unit Price incl. VAT
4
Spark plug insp. door
6221360090
Not Available
4
Spark plug insp. door
62213600VG
Not Available
5
Self tapping screw 4,2x16
015911
$2,25 Unit Price incl. VAT
6
Plate
CM017408
$0,25 Unit Price incl. VAT
7
Kit strips, footboard
622139
Not Available
8
Central mat
57345R
$27,67 Unit Price incl. VAT
8
Self tapping screw
297498
$0,08 Unit Price incl. VAT
8
Mat
298243
$12,45 Unit Price incl. VAT
9
LH footrest
622125
$8,16 Unit Price incl. VAT
10
RH footpad
622126
$8,16 Unit Price incl. VAT
11
Screw m6x30
271891
$3,65 Unit Price incl. VAT
11
Screw metrica
CM179303
$0,34 Unit Price incl. VAT
12
Spring plate M6
254485
$0,34 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
