Driven pulley for GILERA PIAGGIO VESPA LXV 4T 3V E3 from 2013

Driven pulley

1

PULEGGIA CONDOTTA COMPL.FRIZIONE

CM167102

$250,05 Unit Price incl. VAT

2

SEMIPULEGGIA CONDOTTA FISSA COMPL.

B017979

$98,69 Unit Price incl. VAT

3

ANELLO

006628

$0,34 Unit Price incl. VAT

4

Roller cage 22x29x18

B014169

$14,99 Unit Price incl. VAT

5

CUSCINETTO A SFERE

880512

$15,97 Unit Price incl. VAT

6

SEMIPULEGGIA COND.MOBILE COMPL.

B017974

$46,57 Unit Price incl. VAT

7

ANELLO TENUTA

289950

$9,17 Unit Price incl. VAT

8

MOLLA VARIATORE

B013304

$16,48 Unit Price incl. VAT

9

RULLO

431091

$0,67 Unit Price incl. VAT

10

SCODELLINO LATO PULEGGIA

880539

$12,95 Unit Price incl. VAT

11

SCODELLINO LATO FRIZIONE

880543

$10,68 Unit Price incl. VAT

12

GR. FRIZIONE CENTRIFUGA COMPLETA RIC

CM1672015

$141,75 Unit Price incl. VAT

13

GUARNIZIONE

289840

$1,26 Unit Price incl. VAT

14

RONDELLA STRISCIANTE

880540

$2,69 Unit Price incl. VAT

15

SCODELLINO CONTEN.MOLLA

880541

$4,79 Unit Price incl. VAT

16

GHIERA

289955

$8,58 Unit Price incl. VAT

17

PERNO

B014466

$1,43 Unit Price incl. VAT

18

Flat washer 22x12,1x1

B016005

Not Available

19

DADO ESAGONALE BASSO

B016992

$0,50 Unit Price incl. VAT

20

Clutch drum

B017265

$43,20 Unit Price incl. VAT

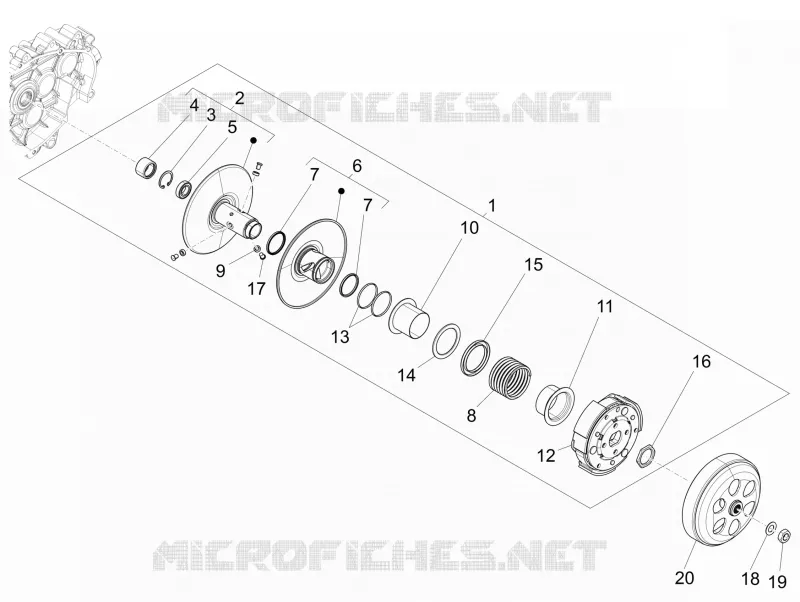

Find the detailed Driven pulley GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
