Engine displacement
150
2
Model
LXV
3
Year
2016
4
Trim
LXV 4T 3V E3
5
Parts Catalog
Main cable harness
6
Parts Diagram
Parts Catalog
Selectors - Switches - Buttons
by
Swinging arm
Main cable harness
1
1
1
1
2
3
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
1
Cable harness
1D000117
Not Available
1
Cable harness
1D000490
Not Available
2
Cap
583971
$0,59 Unit Price incl. VAT
3
Fuse holder
580653
$35,69 Unit Price incl. VAT
4
Fuse 7,5A
252945
$0,42 Unit Price incl. VAT
5
Fuse 15A
290860
$5,73 Unit Price incl. VAT
6
Reed fuse 10A
292507
$0,42 Unit Price incl. VAT
7
Hose clamp 2,7x132
640879
$0,92 Unit Price incl. VAT
8
Fuse 20A
580561
$0,42 Unit Price incl. VAT
9
Cap
581061
$1,37 Unit Price incl. VAT
10
Plug connect diagnos ECU
582928
$1,01 Unit Price incl. VAT
11
Cap
292577
Not Available
12
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
13
Spring for connector
639560
$0,67 Unit Price incl. VAT
14
Tri/lobed hexagonal self-tapping screw
641204
$0,34 Unit Price incl. VAT
15
Flat washer 6,4x12x1
003056
$0,08 Unit Price incl. VAT
16
Spring washer 6,4x11,8x1
016406
$0,34 Unit Price incl. VAT
17
Cable support bracket
643240
$4,01 Unit Price incl. VAT
18
Connector spring
584520
$5,38 Unit Price incl. VAT
19
Pipes/cables retainer spring
CM006903
$1,43 Unit Price incl. VAT
20
Non return spring l=27
CM006904
$0,25 Unit Price incl. VAT
21
Non return spring L=33
CM006906
$1,26 Unit Price incl. VAT
22
Non return spring
CM006912
$0,42 Unit Price incl. VAT
23
Spring for connector
639560
$0,67 Unit Price incl. VAT
24
Plugs spring
641599
$4,82 Unit Price incl. VAT
25
Spring for connector
641769
$2,27 Unit Price incl. VAT
26
Maintenance
584002
$1,77 Unit Price incl. VAT
27
Fuse support bracket
642076
$6,30 Unit Price incl. VAT
28
Hose clamp
641764
$0,25 Unit Price incl. VAT
29
Earth braid
581309
$3,49 Unit Price incl. VAT
30
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
30
Lock-strap L=277
257134
$0,25 Unit Price incl. VAT
31
Fairlead
294754
$0,51 Unit Price incl. VAT
32
Connectors support bracket
641963
Not Available
33
Pipes/cables retainer spring
CM013202
$1,10 Unit Price incl. VAT
33
Spring
CM013201
$0,40 Unit Price incl. VAT

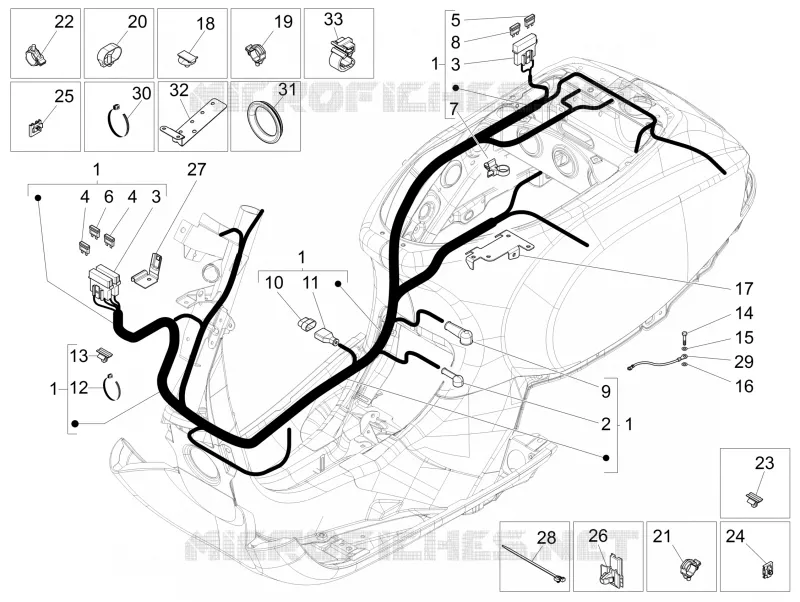

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
