Handlebars - Master cil. for LX 4T-4V Touring from 2012

Handlebars - Master cil.

1

Handlebar with U.P.

57361R5

Not Available

1

Handlebar with U.P.

6555105

Not Available

2

Hex socket screw

655554

$3,70 Unit Price incl. VAT

3

Flat washer 18x10,2x2,5

267917

$0,50 Unit Price incl. VAT

4

Flat elastic washer with internal toothing 17x10,3x2

012543

$0,08 Unit Price incl. VAT

5

Nut M10

015330

$0,25 Unit Price incl. VAT

6

Guard

666117

$6,15 Unit Price incl. VAT

7

Throttle control sleeve assembly

CM060982

Not Available

8

Grip, r.h.

CM083804

$18,36 Unit Price incl. VAT

9

Ring 38,3x27x1,2

562923

$2,99 Unit Price incl. VAT

10

Screw with bushing

123394

$3,70 Unit Price incl. VAT

11

Complete throttle control transmission

650477

$46,68 Unit Price incl. VAT

12

Nut M8

020208

$2,95 Unit Price incl. VAT

13

Adjuster screw

269145

$1,30 Unit Price incl. VAT

14

Nut M6

020206

$0,08 Unit Price incl. VAT

15

Grip, l.h.

CM083803

$18,36 Unit Price incl. VAT

16

Front master cilinder

CM074904

$125,55 Unit Price incl. VAT

17

Brake lever

646833

Not Available

18

Sleeve with rear brake lever

CM063806

$35,10 Unit Price incl. VAT

18

Left hand grip with rear brake lever

CM063804

$51,30 Unit Price incl. VAT

19

Screw with bushing

123394

$3,70 Unit Price incl. VAT

20

Rear brake control lever

564683

$22,55 Unit Price incl. VAT

21

Screw and nut

121780

Not Available

22

Spring

267948

$4,89 Unit Price incl. VAT

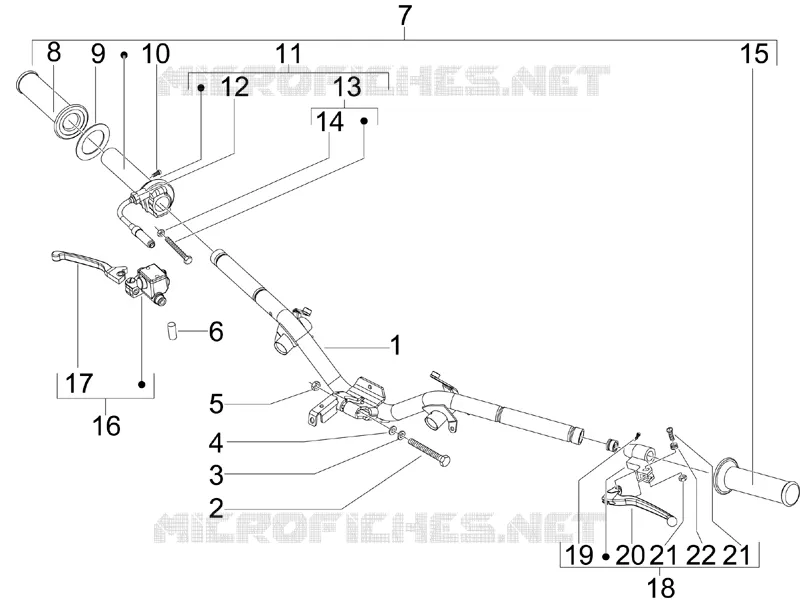

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
