1
Engine displacement
50
2
Model
LX
3
Year
2012
4
Trim
LX 4T-4V
5
Parts Catalog

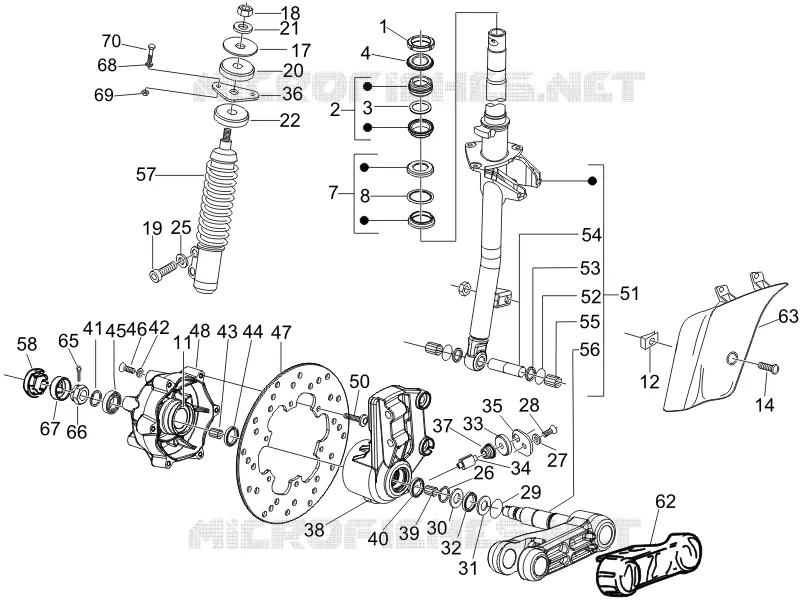

Fork/steering tube - Steering bearing unit
6
Parts Diagram
Parts Catalog
Locks
by
Crankcase
Fork/steering tube - Steering bearing unit
1
2
3
4
7
8
11
12
14
17
18
19
20
21
22
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
50
51
52
53
54
55
56
57
58
62
63
65
66
67
68
69
70
1
Steering tube ring nut
0111094
$2,60 Unit Price incl. VAT
2
Upper thrust ring
6506934
Not Available
3
Missing description
000000
Not Available
4
Washer of the steering
0037514
$1,51 Unit Price incl. VAT
7
Lower steering bearing
6500754
Not Available
8
Missing description
000000
Not Available
11
Ring gear counts Km socket
267818
$33,03 Unit Price incl. VAT
12
Spring plate M6
254485
$0,34 Unit Price incl. VAT
14
Metric screw M6x22
CM179201
$0,34 Unit Price incl. VAT
14
Metric screw TBC
575249
$0,66 Unit Price incl. VAT
17
Washer
012535
$0,08 Unit Price incl. VAT
18
Nut
021210
$0,16 Unit Price incl. VAT
19
Hex socket screw M8x40
149104
$0,51 Unit Price incl. VAT
20
Pad
174085
$1,18 Unit Price incl. VAT
21
Washer
174088
$0,84 Unit Price incl. VAT
22
Pad
174874
$2,36 Unit Price incl. VAT
25
Spring washer
709047
$0,08 Unit Price incl. VAT
26
Circlip
006422
$0,16 Unit Price incl. VAT
27
Washer Ø5,3xØ10x0,5
006975
$0,17 Unit Price incl. VAT
28
screw M5x16
031058
$2,95 Unit Price incl. VAT
29
O-ring
177408
$0,08 Unit Price incl. VAT
30
Washer
177414
$0,75 Unit Price incl. VAT
31
Washer
177445
$0,34 Unit Price incl. VAT
32
Ring
177521
$0,66 Unit Price incl. VAT
33
Pad
266841
$5,53 Unit Price incl. VAT
34
Pinion
267819
$7,69 Unit Price incl. VAT
35
Plate
269118
$4,82 Unit Price incl. VAT
36
Shock absorber connection bracket
601556
$7,73 Unit Price incl. VAT
37
Maintenance
564053
Not Available
38
Not available
5602865
$166,91 Unit Price incl. VAT
39
Drawn cap
177436
$9,18 Unit Price incl. VAT
40
Ring
177494
$1,85 Unit Price incl. VAT
41
Snap ring
006635
$0,25 Unit Price incl. VAT
42
Spring washer 6,4x11x0,5
006966
$0,08 Unit Price incl. VAT
43
Roller cage
177442
$4,04 Unit Price incl. VAT
44
Gasket ring
177443
$1,77 Unit Price incl. VAT
45
Bearing
177610
$8,41 Unit Price incl. VAT
46
Hex socket screw M6x20
271147
$0,17 Unit Price incl. VAT
47
Brake disc
56395R
$21,87 Unit Price incl. VAT
48
Front wheel hub
560284
Not Available
50
Hex socket screw M6x20
271147
$0,17 Unit Price incl. VAT
51
Steering tube complete with arm
6484135
$564,31 Unit Price incl. VAT
52
Gasket
006731
$0,34 Unit Price incl. VAT
53
Gasket ring
119219
$0,67 Unit Price incl. VAT
54
Piston pin
177451
$3,03 Unit Price incl. VAT
55
Roller cage
198513
$5,97 Unit Price incl. VAT
56
Left suspension arm
6483975
$109,60 Unit Price incl. VAT
57
Front shock absorber cpl.
601997
$85,05 Unit Price incl. VAT
58
Cover
092517
Not Available
62
Front suspension arm cover
561433
Not Available
63
Front suspension cover
60041640EU
$90,69 Unit Price incl. VAT
63
Front suspension cover
60041640BR
Not Available
63
Front suspension cover
60041640AH
$90,69 Unit Price incl. VAT
63
Front suspension cover
60041640C5
$90,69 Unit Price incl. VAT
63
Front suspension cover
60041640DM
Not Available
63
Front suspension cover
6004164
$72,85 Unit Price incl. VAT
63
Front suspension cover
60041640VM
$90,69 Unit Price incl. VAT
63
Front suspension cover
60041640H9
Not Available
63
Front suspension cover
60041640DE
Not Available
63
Front suspension cover
60041640AI
Not Available
63
Front suspension cover
60041640M4
$90,69 Unit Price incl. VAT
63
Front suspension cover
6004164018
Not Available
63
Front suspension cover
60041640R7
$90,69 Unit Price incl. VAT
63
Front suspension cover
60041640P3
$90,69 Unit Price incl. VAT
63
Front suspension cover
60041640XN2
Not Available
63
Front suspension cover
60041640P2
$90,69 Unit Price incl. VAT
65
Split pin
012789
$0,16 Unit Price incl. VAT
66
Nut
021114
$0,51 Unit Price incl. VAT
67
Cap
177609
$2,19 Unit Price incl. VAT
68
Spring washer 13,75x8,15x4,5
016408
$0,08 Unit Price incl. VAT
69
Nut M8x6,5
020108
$0,08 Unit Price incl. VAT
70
screw
031120
$0,42 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
