1
Engine displacement
50
2
Model
LX
3
Year
2011
4
Trim
LX 4T-2V 25Km/h
5
Parts Catalog

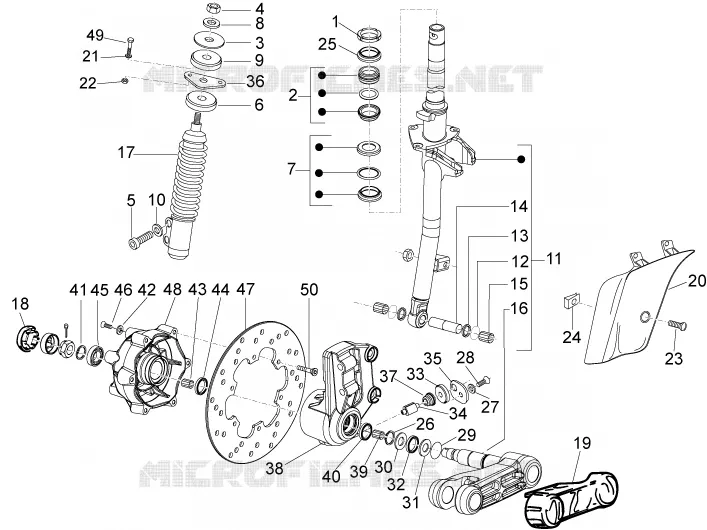

Fork/steering tube - Steering bearing unit
6
Parts Diagram
Parts Catalog
Driven pulley
by
Stand/s
Fork/steering tube - Steering bearing unit
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
1
Steering tube ring nut
0111094
$2,60 Unit Price incl. VAT
2
Upper thrust ring
650693
Not Available
3
Washer
012535
$0,08 Unit Price incl. VAT
4
Nut
021210
$0,16 Unit Price incl. VAT
5
Hex socket screw M8x40
149104
$0,51 Unit Price incl. VAT
6
Pad
174085
$1,18 Unit Price incl. VAT
7
Lower steering bearing
6500754
Not Available
8
Washer
174088
$0,84 Unit Price incl. VAT
9
Pad
174874
$2,36 Unit Price incl. VAT
10
Spring washer
709047
$0,08 Unit Price incl. VAT
11
Steering tube complete with arm
6484135
$564,31 Unit Price incl. VAT
12
Gasket
006731
$0,34 Unit Price incl. VAT
13
Gasket ring
119219
$0,67 Unit Price incl. VAT
14
Piston pin
177451
$3,03 Unit Price incl. VAT
15
Roller cage
198513
$5,97 Unit Price incl. VAT
16
Left suspension arm
6483975
$109,60 Unit Price incl. VAT
17
Complete front shock absorber
646959
Not Available
18
Cover
092517
Not Available
19
Front suspension arm cover
561433
Not Available
20
Front suspension cover
60041640BR
Not Available
20
Front suspension cover
60041640C5
$90,69 Unit Price incl. VAT
20
Front suspension cover
6004164
$72,85 Unit Price incl. VAT
20
Front suspension cover
60041640VM
$90,69 Unit Price incl. VAT
20
Front suspension cover
60041640DE
Not Available
20
Front suspension cover
60041640M4
$90,69 Unit Price incl. VAT
20
Front suspension cover
60041640R7
$90,69 Unit Price incl. VAT
20
Front suspension cover
60041640XN2
Not Available
21
Spring washer 13,75x8,15x4,5
016408
$0,08 Unit Price incl. VAT
22
Nut M8x6,5
020108
$0,08 Unit Price incl. VAT
23
Metric screw M6x22
CM179201
$0,34 Unit Price incl. VAT
24
Spring plate M6
254485
$0,34 Unit Price incl. VAT
25
Washer of the steering
0037514
$1,51 Unit Price incl. VAT
26
Circlip
006422
$0,16 Unit Price incl. VAT
27
Washer Ø5,3xØ10x0,5
006975
$0,17 Unit Price incl. VAT
28
screw M5x16
031058
$2,95 Unit Price incl. VAT
29
O-ring
177408
$0,08 Unit Price incl. VAT
30
Washer
177414
$0,75 Unit Price incl. VAT
31
Washer
177445
$0,34 Unit Price incl. VAT
32
Ring
177521
$0,66 Unit Price incl. VAT
33
Pad
266841
$5,53 Unit Price incl. VAT
34
Pinion
267819
$7,69 Unit Price incl. VAT
35
Plate
269118
$4,82 Unit Price incl. VAT
36
Shock absorber connection bracket
601556
$7,73 Unit Price incl. VAT
37
Maintenance
564053
Not Available
38
Not available
560286
Not Available
39
Drawn cap
177436
$9,18 Unit Price incl. VAT
40
Ring
177494
$1,85 Unit Price incl. VAT
41
Snap ring
006635
$0,25 Unit Price incl. VAT
42
Spring washer 6,4x11x0,5
006966
$0,08 Unit Price incl. VAT
43
Roller cage
177442
$4,04 Unit Price incl. VAT
44
Gasket ring
177443
$1,77 Unit Price incl. VAT
45
Bearing
177610
$8,41 Unit Price incl. VAT
46
Hex socket screw M6x20
271147
$0,17 Unit Price incl. VAT
47
Brake disc
56395R
$21,87 Unit Price incl. VAT
48
Front wheel hub
560284
Not Available
49
screw
031120
$0,42 Unit Price incl. VAT
50
Hex socket screw M6x20
271147
$0,17 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
