1
Engine displacement
50
2
Model
LX
3
Year
2006
4
Trim
LX 4T
5
Parts Catalog
Carburettor, assembly - Union pipe
6
Parts Diagram
Parts Catalog
Front glove-box - Knee-guard panel
by
Rear wheel

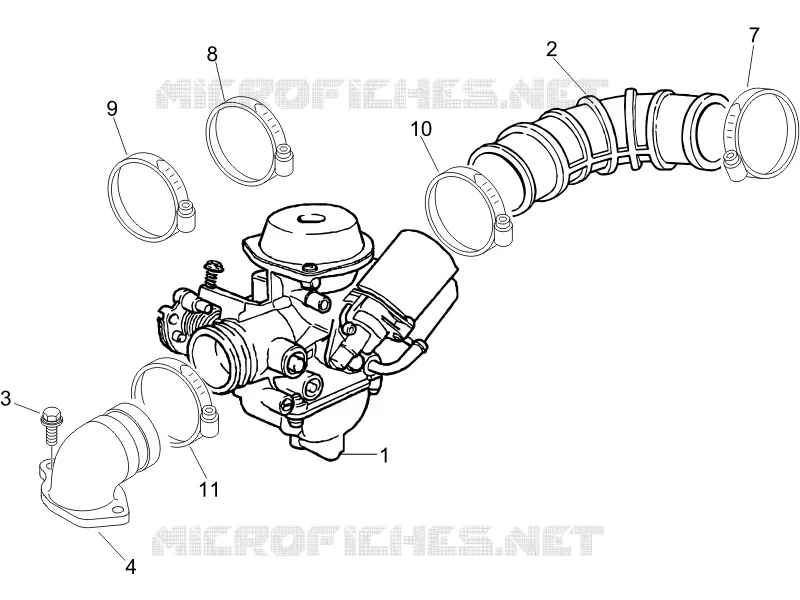

Carburettor, assembly - Union pipe
1
2
3
4
7
8
9
10
11
1
Carburettor keihin
CM141910
Not Available
1
Carburettor keihin
CM141906
Not Available
2
Carburettor-air box hose
845489
$8,40 Unit Price incl. VAT
3
Hex screw M6x22
031091
$0,17 Unit Price incl. VAT
3
Hex screw M6x20
018639
$0,16 Unit Price incl. VAT
4
Union pipe
845946
$15,65 Unit Price incl. VAT
6
Lock-strap L=277
257134
$0,25 Unit Price incl. VAT
7
Hose clamp
847778
$0,33 Unit Price incl. VAT
8
Hose clamp
CM002901
$0,09 Unit Price incl. VAT
9
Hose clamp
CM002904
$0,42 Unit Price incl. VAT
10
Hose clamp
CM001904
$0,75 Unit Price incl. VAT
11
Hose clamp
709532
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
