Handlebars - Master cil. for LX 4T from 2007

Handlebars - Master cil.

1

Handlebar

6221935

Not Available

2

Flat elastic washer with internal toothing 17x10,3x2

012543

$0,08 Unit Price incl. VAT

3

Nut M10

015330

$0,25 Unit Price incl. VAT

4

Flat washer 18x10,2x2,5

267917

$0,50 Unit Price incl. VAT

5

screw

223605

Not Available

7

Hose

CM060968

Not Available

8

Screw with bushing

123394

$3,70 Unit Price incl. VAT

9

Grip, l.h.

274489

$13,41 Unit Price incl. VAT

10

RH hand grip

274491

$12,19 Unit Price incl. VAT

11

Ring 38,3x27x1,2

562923

$2,99 Unit Price incl. VAT

17

Left hand grip with rear brake lever

CM063804

$51,30 Unit Price incl. VAT

18

Screw with nut

265249

$3,70 Unit Price incl. VAT

19

Screw with bushing

123394

$3,70 Unit Price incl. VAT

20

Spring

267948

$4,89 Unit Price incl. VAT

21

Rear brake control lever

564683

$22,55 Unit Price incl. VAT

22

Brakes pump

56216R

Not Available

22

Front master cilinder

CM074904

$125,55 Unit Price incl. VAT

23

Brake lever (Kaliani)

650152

Not Available

23

Fr. br. lever GRIMECA

646803

$90,45 Unit Price incl. VAT

23

Brake lever

646833

Not Available

24

Gas lever transmission

601716

$44,55 Unit Price incl. VAT

25

Nut M8

020208

$2,95 Unit Price incl. VAT

27

Guard

147511

$2,95 Unit Price incl. VAT

28

Adjuster screw

269145

$1,30 Unit Price incl. VAT

29

Nut M6

020206

$0,08 Unit Price incl. VAT

30

Protection pipe

612792

Not Available

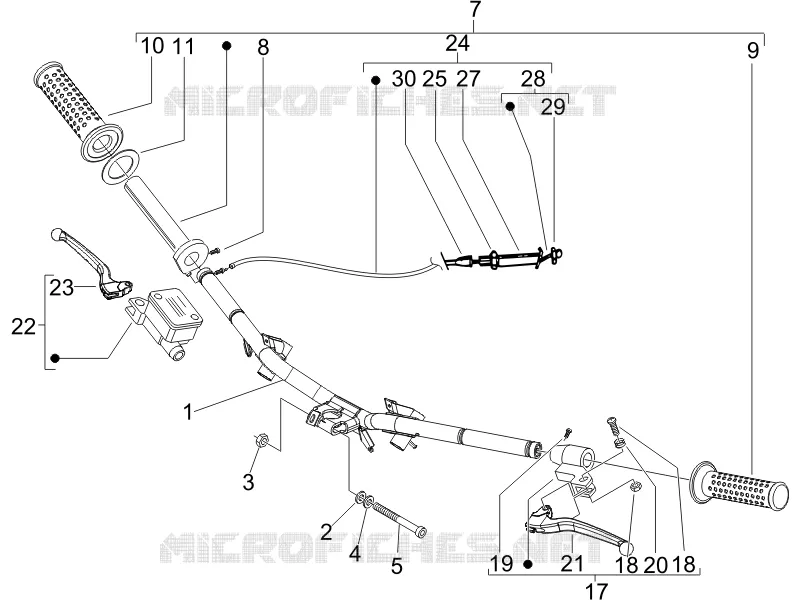

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
