1
Engine displacement
50
2
Model
LX
3
Year
2006
4
Trim
LX 4T
5
Parts Catalog

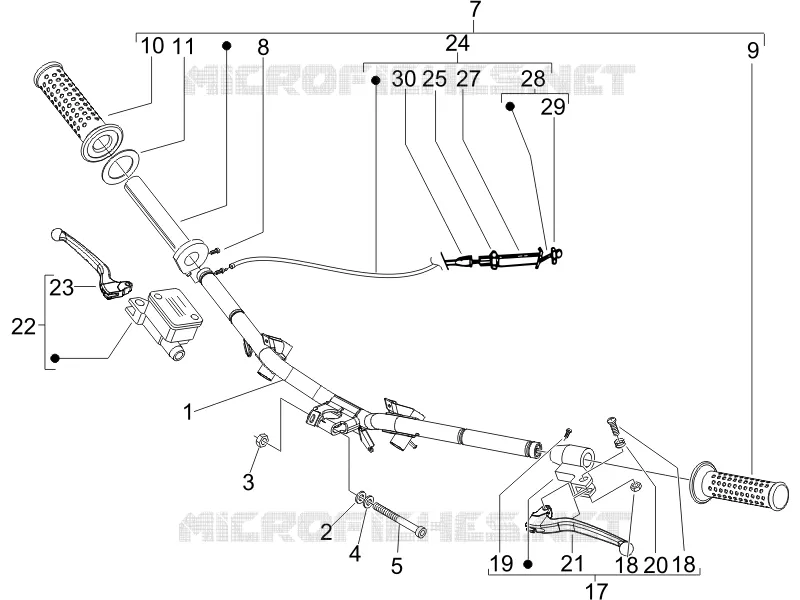

Handlebars - Master cil.
6
Parts Diagram
Parts Catalog
Brakes pipes - Calipers
by
Helmet huosing - Undersaddle
Handlebars - Master cil.
1
2
3
4
5
7
8
9
10
11
17
18
18
19
20
21
22
23
24
25
27
28
29
30
1
Handlebar
6221935
Not Available
2
Flat elastic washer with internal toothing 17x10,3x2
012543
$0,08 Unit Price incl. VAT
3
Nut M10
015330
$0,25 Unit Price incl. VAT
4
Flat washer 18x10,2x2,5
267917
$0,50 Unit Price incl. VAT
5
screw
223605
Not Available
7
Hose
CM060968
Not Available
8
Screw with bushing
123394
$3,70 Unit Price incl. VAT
9
Grip, l.h.
274489
$13,41 Unit Price incl. VAT
10
RH hand grip
274491
$12,19 Unit Price incl. VAT
11
Ring 38,3x27x1,2
562923
$2,99 Unit Price incl. VAT
17
Left hand grip with rear brake lever
CM063804
$51,30 Unit Price incl. VAT
18
Screw with nut
265249
$3,70 Unit Price incl. VAT
19
Screw with bushing
123394
$3,70 Unit Price incl. VAT
20
Spring
267948
$4,89 Unit Price incl. VAT
21
Rear brake control lever
564683
$22,55 Unit Price incl. VAT
22
Front master cilinder
CM074904
$125,55 Unit Price incl. VAT
23
Brake lever
646833
Not Available
24
Gas lever transmission
601716
$44,55 Unit Price incl. VAT
25
Nut M8
020208
$2,95 Unit Price incl. VAT
27
Guard
147511
$2,95 Unit Price incl. VAT
28
Adjuster screw
269145
$1,30 Unit Price incl. VAT
29
Nut M6
020206
$0,08 Unit Price incl. VAT
30
Protection pipe
612792
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
