Engine displacement
50
2
Model
LX
3
Year
2005
4
Trim
LX 2T 25 Km/h
5
Parts Catalog
Crankcase
6
Parts Diagram
Parts Catalog
Engine, assembly
by
Crankshaft
Crankcase
1
2
3
4
5
6
6
7
7
8
8
9
10
11
12
13
14
15
16
17
18
19
20
1
CRANKCASE
CM1273015
Not Available
2
Pin 6,5x9,5x15
239388
Not Available
3
DISTANZIALE
266625
$3,70 Unit Price incl. VAT
4
SILENTBLOC PER AMMORTI
267823
$4,92 Unit Price incl. VAT
5
DADO M6 H=6 k7
020006
$0,34 Unit Price incl. VAT
6
DADO M8-6H
020008
$0,08 Unit Price incl. VAT
7
ANELLO DI RITEGNO
113533
$0,09 Unit Price incl. VAT
8
Stud bolt
239382
Not Available
9
SILENTBLOC ATT. MOTORE
266773
$3,63 Unit Price incl. VAT
10
ANELLO DI RITEGNO
287223
$0,05 Unit Price incl. VAT
11
BUSSOLA (GRUPPO RINVIO)
431860
$3,70 Unit Price incl. VAT
12
PERNO FULCRO GANASCE
272921
$5,45 Unit Price incl. VAT
13
screw
414835
$0,15 Unit Price incl. VAT
14
Gasket
000397
Not Available
15
ANELLO ELASTICO 47x50,5x1,75
006647
$1,10 Unit Price incl. VAT
16
VITE TCEI (M8x12)
269755
$0,34 Unit Price incl. VAT
17
CUSCINETTO 20X47X14
434735
$7,12 Unit Price incl. VAT
18
ANELLO DI TENUTA k2
478498
$8,12 Unit Price incl. VAT
19
ASTA LIVELLO OLIO COMPL.
832130
$2,94 Unit Price incl. VAT
20
ANELLO DI TENUTA (O-RING)
827085
$2,99 Unit Price incl. VAT

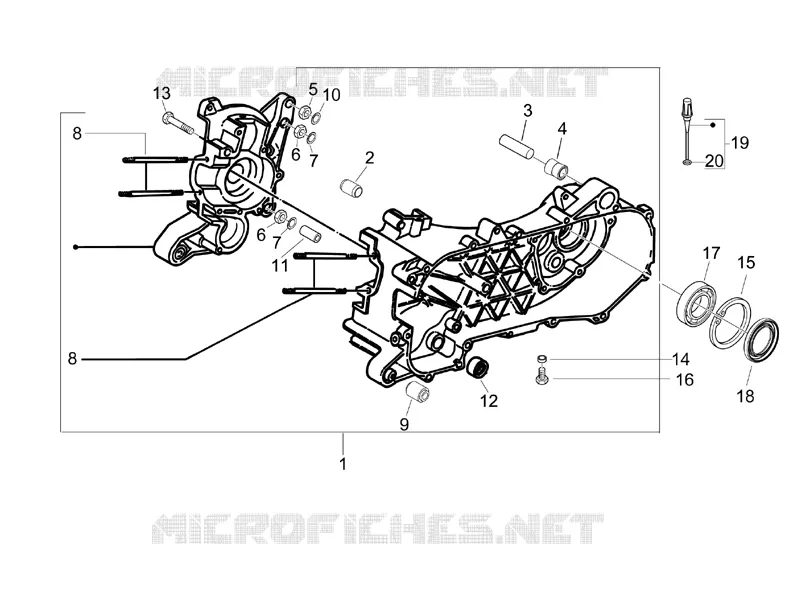

Find the detailed Crankcase GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
