1
Engine displacement
50
2
Model
LX
3
Year
2009
4
Trim
LX 2T
5
Parts Catalog

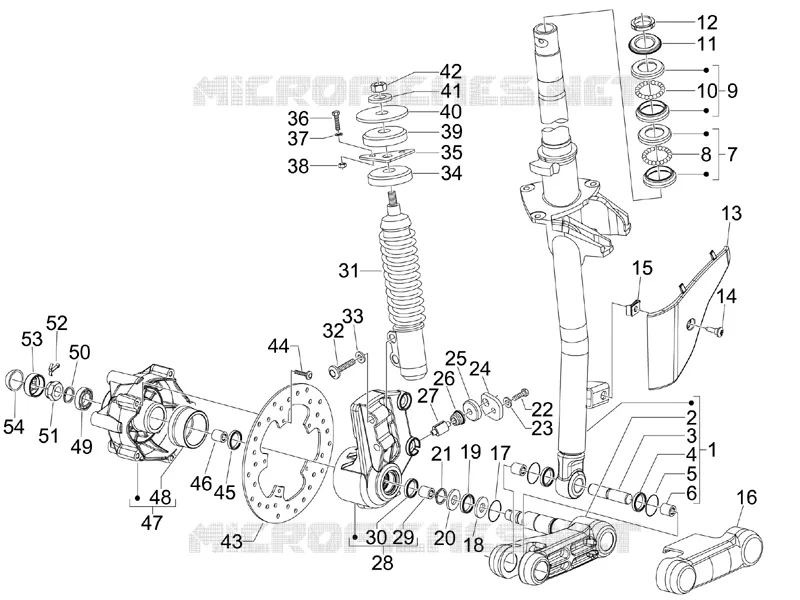

Fork/steering tube - Steering bearing unit
6
Parts Diagram
Parts Catalog
Rear wheel
by
Carburettor, assembly - Union pipe
Fork/steering tube - Steering bearing unit
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
1
Steering tube complete with arm
6484135
$564,31 Unit Price incl. VAT
2
Left suspension arm
6483975
$109,60 Unit Price incl. VAT
3
Piston pin
177451
$3,03 Unit Price incl. VAT
4
Gasket ring
119219
$0,67 Unit Price incl. VAT
5
Gasket
006731
$0,34 Unit Price incl. VAT
6
Roller cage
198513
$5,97 Unit Price incl. VAT
7
Lower steering bearing
650075
Not Available
8
Missing description
000000
Not Available
9
Upper thrust ring
650693
Not Available
10
Missing description
000000
Not Available
11
Washer of the steering
0037514
$1,51 Unit Price incl. VAT
12
Steering tube ring nut
0111094
$2,60 Unit Price incl. VAT
13
Front suspension cover
60041640BR
Not Available
13
Front suspension cover
60041640AH
$90,69 Unit Price incl. VAT
13
Front suspension cover
60041640C5
$90,69 Unit Price incl. VAT
13
Front suspension cover
6004164
$72,85 Unit Price incl. VAT
13
Front suspension cover
60041640VM
$90,69 Unit Price incl. VAT
13
Front suspension cover
60041640H9
Not Available
13
Front suspension cover
60041640DE
Not Available
13
Front suspension cover
60041640AI
Not Available
13
Front suspension cover
60041640M4
$90,69 Unit Price incl. VAT
13
Front suspension cover
60041640R7
$90,69 Unit Price incl. VAT
13
Front suspension cover
60041640P3
$90,69 Unit Price incl. VAT
13
Front suspension cover
60041640XN2
Not Available
13
Front suspension cover
60041640P2
$90,69 Unit Price incl. VAT
14
Metric screw M6x22
CM179201
$0,34 Unit Price incl. VAT
15
Spring plate M6
254485
$0,34 Unit Price incl. VAT
16
Front suspension arm cover
561433
Not Available
17
O-ring
177408
$0,08 Unit Price incl. VAT
18
Washer
177445
$0,34 Unit Price incl. VAT
19
Ring
177521
$0,66 Unit Price incl. VAT
20
Washer
177414
$0,75 Unit Price incl. VAT
21
Circlip
006422
$0,16 Unit Price incl. VAT
22
screw M5x16
031058
$2,95 Unit Price incl. VAT
23
Washer Ø5,3xØ10x0,5
006975
$0,17 Unit Price incl. VAT
24
Plate
269118
$4,82 Unit Price incl. VAT
25
Pad
266841
$5,53 Unit Price incl. VAT
26
Maintenance
564053
Not Available
27
Pinion
267819
$7,69 Unit Price incl. VAT
28
Not available
5602865
$166,91 Unit Price incl. VAT
29
Drawn cap
177436
$9,18 Unit Price incl. VAT
30
Ring
177494
$1,85 Unit Price incl. VAT
31
Front shock absorber cpl.
601997
$85,05 Unit Price incl. VAT
32
Hex socket screw M8x40
149104
$0,51 Unit Price incl. VAT
33
Spring washer
709047
$0,08 Unit Price incl. VAT
34
Pad
174874
$2,36 Unit Price incl. VAT
35
Shock absorber connection bracket
601556
$7,73 Unit Price incl. VAT
35
Bracket
273693
$7,23 Unit Price incl. VAT
36
screw
031120
$0,42 Unit Price incl. VAT
37
Spring washer 13,75x8,15x4,5
016408
$0,08 Unit Price incl. VAT
38
Nut M8x6,5
020108
$0,08 Unit Price incl. VAT
39
Pad
174085
$1,18 Unit Price incl. VAT
40
Washer
012535
$0,08 Unit Price incl. VAT
41
Washer
174088
$0,84 Unit Price incl. VAT
42
Nut
021210
$0,16 Unit Price incl. VAT
43
Brake disc
56395R
$21,87 Unit Price incl. VAT
44
Hex socket screw M6x20
271147
$0,17 Unit Price incl. VAT
45
Gasket ring
177443
$1,77 Unit Price incl. VAT
46
Roller cage
177442
$4,04 Unit Price incl. VAT
47
Front wheel hub
560284
Not Available
48
Ring gear counts Km socket
267818
$33,03 Unit Price incl. VAT
49
Bearing
177610
$8,41 Unit Price incl. VAT
50
Snap ring
006635
$0,25 Unit Price incl. VAT
51
Nut
021114
$0,51 Unit Price incl. VAT
52
Split pin
012789
$0,16 Unit Price incl. VAT
53
Cap
177609
$2,19 Unit Price incl. VAT
54
Cover
092517
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
