1
Engine displacement
50
2
Model
LX
3
Year
2006
4
Trim
LX 2T
5
Parts Catalog
Wheel huosing - Mudguard
6
Parts Diagram
Parts Catalog
Plates - Emblems
by

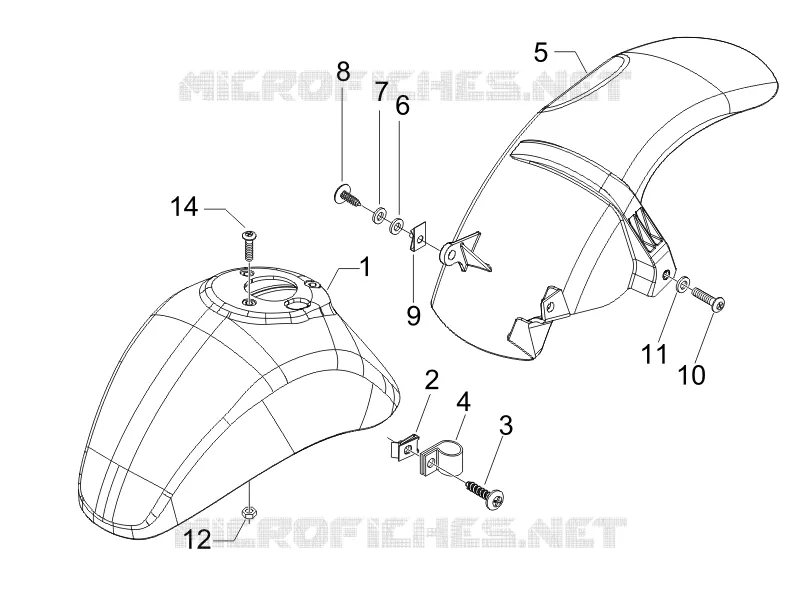

Wheel huosing - Mudguard
1
2
3
4
5
6
7
8
9
10
11
12
14
1
Mudguard
60041540R7
Not Available
1
Front mudguard
6004154
Not Available
1
FF MUDGUARD
60041540AH
Not Available
1
FF MUDGUARD VESPA ET RST PAINTED
60041540GP
Not Available
1
FF MUDGUARD ET/RST
6004154087
$202,43 Unit Price incl. VAT
1
Mudguard
60041540AA
Not Available
1
Mudguard
60041540F2
Not Available
1
FF MUDGUARD
60041540EU
Not Available
1
Front mudguard
650747
Not Available
1
FF MUDGUARD V.LX
60041540DE
Not Available
1
Front mudguard
65074700DE
Not Available
1
Mudguard
60041540BM
Not Available
1
FF MUDGUARD
60041540BR
Not Available
1
FF MUDGUARD VESPA ET RST UNPAINTED
60041540AF
Not Available
1
Mudguard
60041540ND
Not Available
2
Spring plate
CM017410
$0,34 Unit Price incl. VAT
3
screw
015900
$2,95 Unit Price incl. VAT
4
Hose clamp
562919
$3,65 Unit Price incl. VAT
5
Rear mudguard
575079
$66,71 Unit Price incl. VAT
6
Notched washer 6,6x11x0
012533
$0,67 Unit Price incl. VAT
7
Flat washer 16x6,5x1,5
013880
$0,08 Unit Price incl. VAT
8
screw
015804
$3,65 Unit Price incl. VAT
9
Spring plate M6
254485
$0,34 Unit Price incl. VAT
10
Metric screw TBC
575249
$0,66 Unit Price incl. VAT
11
Spring washer
709047
$0,08 Unit Price incl. VAT
12
Self locking nut M6
288245
$0,16 Unit Price incl. VAT
14
Metric screw TBC
575249
$0,66 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
