Oil pump for GILERA PIAGGIO VESPA LX 4T ie Touring from 2010

Oil pump

1

Oil pump assembly

82877R

Not Available

1

POMPA OLIO COMPLETA

82948R

$14,37 Unit Price incl. VAT

2

Carter-oil pump gasket

486082

$0,29 Unit Price incl. VAT

3

VITE A TESTA ESAGONALE FLANGIATA

829593

$0,50 Unit Price incl. VAT

4

COPPA OLIO MOTORE

843761

$13,95 Unit Price incl. VAT

5

GUARNIZIONE CARTER/COPPA OLIO

830128

$2,77 Unit Price incl. VAT

6

Screw w/ flange M6x30

289731

Not Available

7

Retainer clamp

487824

$0,33 Unit Price incl. VAT

8

TAPPO OLIO COMPLETO

843364

$1,39 Unit Price incl. VAT

9

O-ring

479986

Not Available

10

GRANO DI RIFERIMENTO (Ø7,5, H=12)

277916

$0,34 Unit Price incl. VAT

11

Timing system cover

483775

$16,82 Unit Price incl. VAT

12

ANELLO DI TENUTA (O-RING)

825952

$0,15 Unit Price incl. VAT

13

CATENA DISTRIB.SILENZIOSA

82643R

$44,55 Unit Price incl. VAT

15

CATENA POMPA OLIO (50 PS)

82649R

$13,37 Unit Price incl. VAT

16

PIGNONE COM.POMPA OLIO

82783R

$7,99 Unit Price incl. VAT

17

COMPLESSIVO TENDICATENA

82650R

$34,52 Unit Price incl. VAT

18

GUARNIZIONE CIL./SUPP.TENDICATENA

847928

$0,42 Unit Price incl. VAT

19

Screw w/ flange M6x16

434541

$0,09 Unit Price incl. VAT

20

Chain tensioner rod spacer

485868

$0,29 Unit Price incl. VAT

21

Screw w/ flange M6x25

414837

Not Available

22

ASTA TENDICATENA

840510

$2,15 Unit Price incl. VAT

23

PATTINO FISSO

828308

$1,34 Unit Price incl. VAT

24

RONDELLA PARAOLIO

483918

$0,53 Unit Price incl. VAT

26

TAMPONE CATENA POMPA OLIO.

434345

$2,77 Unit Price incl. VAT

27

ANELLO ELASTICO

242364

$3,70 Unit Price incl. VAT

27

ANELLO DI TENUTA (O-R)

825620

$8,21 Unit Price incl. VAT

28

ANELLO DI TENUTA k7

82538R

$8,01 Unit Price incl. VAT

29

Plain washer

487937

$0,09 Unit Price incl. VAT

30

Self-tapping screw

018623

Not Available

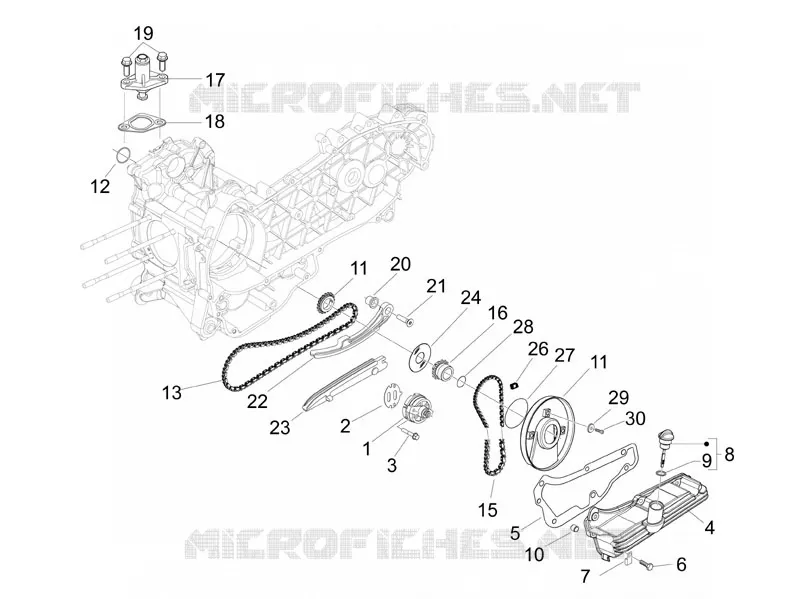

Find the detailed Oil pump GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
