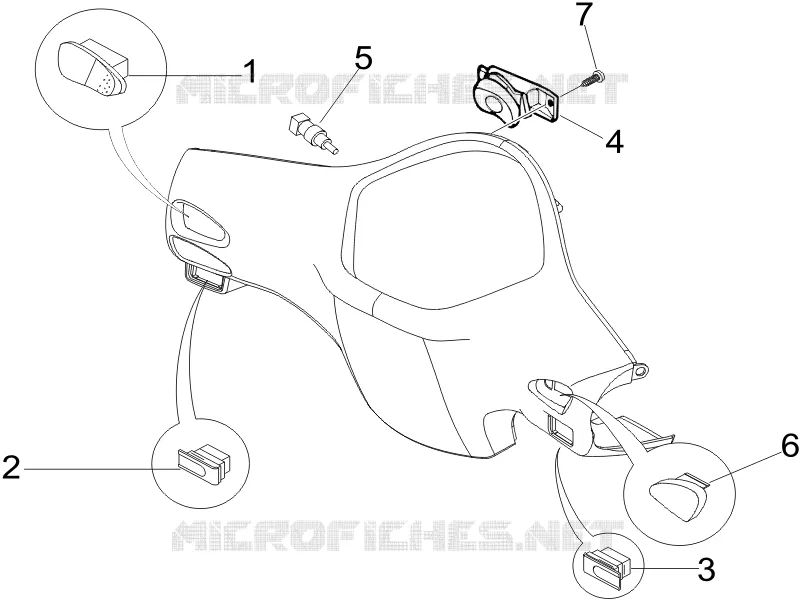

Selectors - Switches - Buttons
1
2
3
4
5
6
7
1
Headlight selector
294877
$9,18 Unit Price incl. VAT
2
Horn button
638976
Not Available
3
Start pushbutton
638975
Not Available
4
Turn signal lamps switch
294723
$12,02 Unit Price incl. VAT
5
stop Button
AP8127305
Not Available
6
Cover
623512
$5,38 Unit Price incl. VAT
7
Self tapping screw 3,5x13
258403
$2,95 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
