by

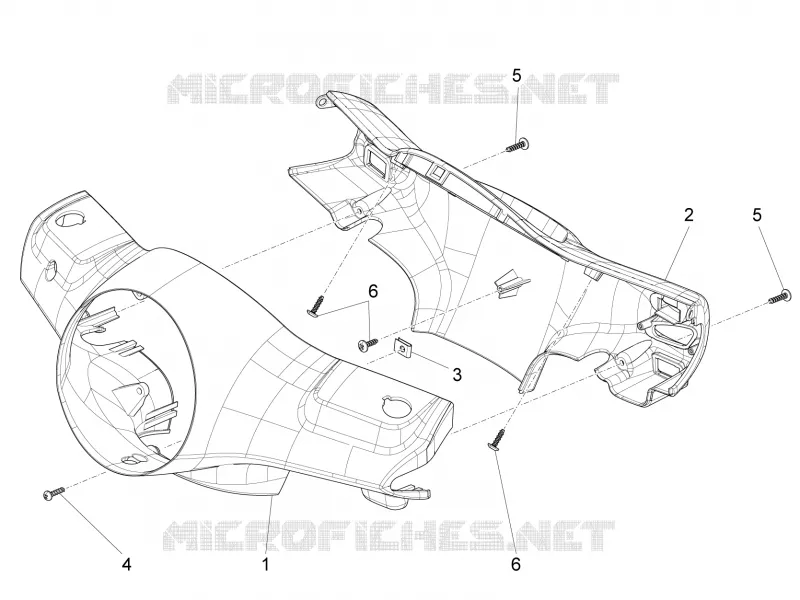

Handlebars coverages
1
2
3
4
5
5
6
6
1
Front handlebar cover
65293500BR
Not Available
1
Front handlebar cover
65293500R7
Not Available
1
Handlebar front cover
65293500P3
Not Available
1
Front handlebar cover
65293500C5
Not Available
1
Front handlebar cover
652935
Not Available
1
Front handlebar cover
65293500EZ
Not Available
1
Front handlebar cover
65293500XN2
Not Available
1
Handlebar front cover
65293500GV
Not Available
1
Front handlebar cover
65293500DE
Not Available
1
Front handlebar cover
65293500YR1
$102,49 Unit Price incl. VAT
1
Front handlebar cover
65293500NL
Not Available
1
Front handlebar cover
65293500VM
Not Available
2
Handlebar rear cover
65293400M5
Not Available
2
Handlebar rear cover
65293420NL
Not Available
2
Handlebar rear cover
65293400YR1
$169,68 Unit Price incl. VAT
2
Handlebar rear cover
65293400BR
Not Available
2
Handlebar rear cover
65293400C5
Not Available
2
Handlebar rear cover
65293400XN2
Not Available
2
Handlebar rear cover
65293400EZ
Not Available
2
Handlebar rear cover
652934
Not Available
2
Handlebar rear cover
65293400DE
Not Available
2
Handlebar rear cover
65293400P3
Not Available
2
Handlebar rear cover
65293400R7
Not Available
2
Handlebar rear cover
65293400VM
Not Available
3
Spring plate
CM017409
$0,08 Unit Price incl. VAT
4
Self-tap screw M4,2x19
008457
$2,99 Unit Price incl. VAT
5
Self-tap screw M3x20
258146
$0,25 Unit Price incl. VAT
6
TBCIC Screw
270793
$0,08 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
