1
Engine displacement
150
2
Model
LX
3
Year
2009
4
Trim
LX 4T ie
5
Parts Catalog
Voltage Regulators - Electronic Control Units (ecu) - H.T. Coil
6
Parts Diagram
Parts Catalog
Fuel tank
by
Brakes pipes - Calipers
Voltage Regulators - Electronic Control Units (ecu) - H.T. Coil
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1
Voltage regulator
58204R
$143,10 Unit Price incl. VAT
2
Hex screw M6x20
018639
$0,16 Unit Price incl. VAT
3
Connector bracket
641845
$15,22 Unit Price incl. VAT
4
Relays protection plate
641846
$7,69 Unit Price incl. VAT
5
Clip
D9004468231
$4,62 Unit Price incl. VAT
6
Flexible support
291017
$4,88 Unit Price incl. VAT
7
Turn indicator control
640289
Not Available
8
HT coil
58120R
$65,76 Unit Price incl. VAT
9
screw M3x20
583236
$3,70 Unit Price incl. VAT
10
Washer 3.2x5.7x0.9
012554
$1,56 Unit Price incl. VAT
11
Nut M 3
020003
$2,27 Unit Price incl. VAT
12
H.v. coil bracket
641573
$15,22 Unit Price incl. VAT
13
Nut
D9004174001
$4,62 Unit Price incl. VAT
14
Screw w/ flange M6x16
434541
$0,09 Unit Price incl. VAT
15
Spring washer 6,4x11,8x1
016406
$0,34 Unit Price incl. VAT
16
Non return spring L=33
CM006906
$1,26 Unit Price incl. VAT
17
Spring
CM013201
$0,40 Unit Price incl. VAT
18
Lock-strap L=277
257134
$0,25 Unit Price incl. VAT
19
End cap
015014
$4,82 Unit Price incl. VAT
20
Insulating cap
071671
$1,29 Unit Price incl. VAT
21
H.V. cable
080341
$5,89 Unit Price incl. VAT
22
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
23
Screened cap
969348
$8,17 Unit Price incl. VAT
24
Protection collar
436919
$1,45 Unit Price incl. VAT

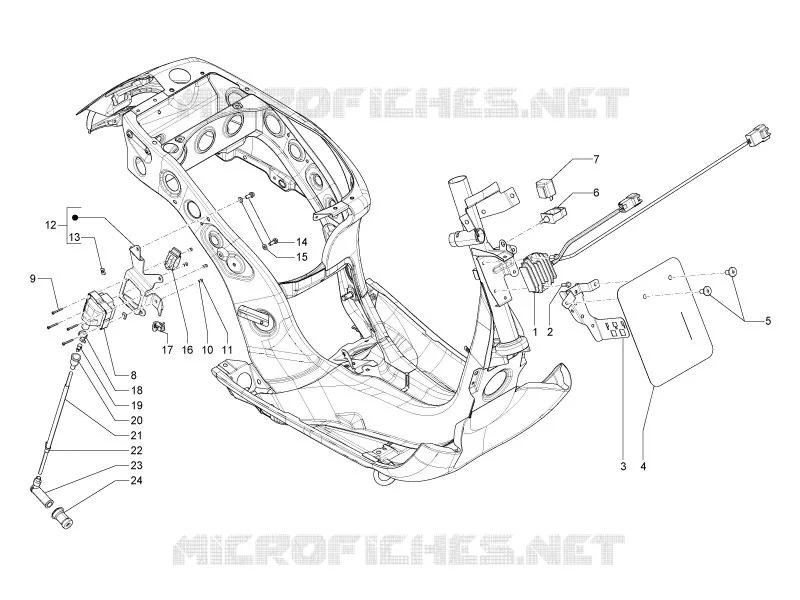

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
