Parts Catalog
Wheel huosing - Mudguard
6

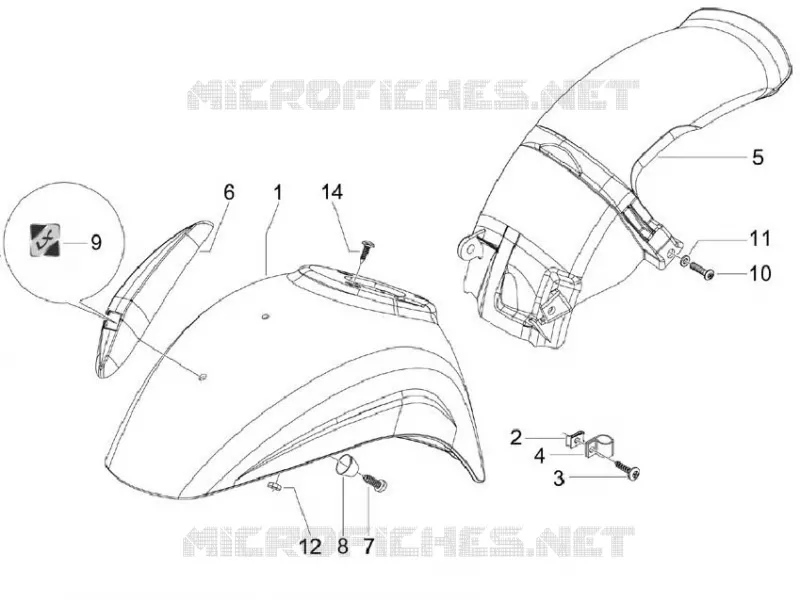

Parts Diagram
Parts Catalog
Flywheel magneto
by
Front headlamps - Turn signal lamps
Wheel huosing - Mudguard
1
2
3
4
5
6
7
8
9
10
11
12
14
1
Front mudguard
65074740AH
Not Available
1
Front mudguard
65074700R7
Not Available
1
Front mudguard
65074700M4
Not Available
1
Front mudguard
65074700ND
$173,23 Unit Price incl. VAT
1
Front mudguard
650747
Not Available
1
Front mudguard
65074740BR
Not Available
1
Front mudguard
65074760P3
Not Available
1
Front mudguard
65074720M5
Not Available
1
Front mudguard
65074740ND
Not Available
1
Front mudguard
65074700GP
Not Available
1
Front mudguard
65074740RS
Not Available
1
Front mudguard
65074720C5
Not Available
1
Front mudguard
65074720DE
Not Available
2
Spring plate
CM017410
$0,34 Unit Price incl. VAT
3
screw
015900
$2,95 Unit Price incl. VAT
4
Hose clamp
562919
$3,65 Unit Price incl. VAT
5
Rear mudguard
575079
$66,71 Unit Price incl. VAT
6
Crest
650748
$8,16 Unit Price incl. VAT
7
Self tapping screw 2,9x9,5
015727
$1,26 Unit Price incl. VAT
8
Cap
192598
$0,42 Unit Price incl. VAT
9
VESPA LX mudguard label
656026
$4,82 Unit Price incl. VAT
10
Metric screw TBC
575249
$0,66 Unit Price incl. VAT
11
Spring washer
709047
$0,08 Unit Price incl. VAT
12
Self locking nut M6
288245
$0,16 Unit Price incl. VAT
14
Metric screw TBC
575249
$0,66 Unit Price incl. VAT
