1
Engine displacement
150
2
Model
LX
3
Year
2006
4
Trim
LX 4T E3
5
Parts Catalog
Reduction unit
6
Parts Diagram
Parts Catalog
Rear headlamps - Turn signal lamps
by
Rear brake - Brake jaw

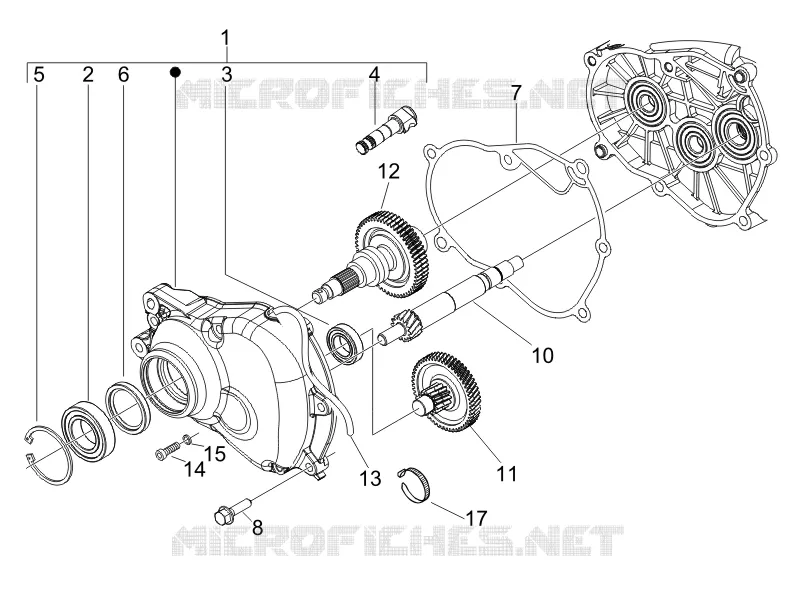

Reduction unit
1
2
3
4
5
6
7
8
10
11
12
13
14
15
1
Side cover
8460265
Not Available
2
Radial bearing 25x52x15
478984
$14,08 Unit Price incl. VAT
3
Radial ball bearing 15x42x13
485912
Not Available
4
Shoe fulcrum pin
272921
$5,45 Unit Price incl. VAT
5
Snap ring
006652
$0,76 Unit Price incl. VAT
6
Gasket ring
82541R
Not Available
7
Reduction unit cover gasket
847930
$8,78 Unit Price incl. VAT
8
Screw w/ flange M8x45
487211
$0,29 Unit Price incl. VAT
10
Driven pulley shaft
485879
Not Available
11
Transmission shaft
8428785
$78,13 Unit Price incl. VAT
12
Rear wheel axle with U.P.
487127
Not Available
13
Breather pipe
844669
$4,89 Unit Price incl. VAT
14
Hex socket screw M8x12
269755
$0,34 Unit Price incl. VAT
15
Washer 8.2x12x1
485703
$0,16 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
