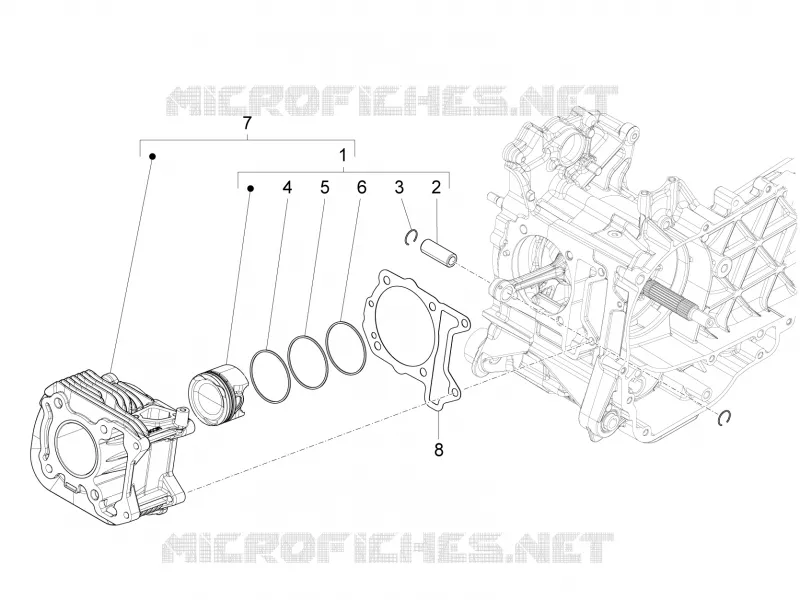

Cylinder-piston-wrist pin unit
1
2
3
4
5
6
7
8
1
Complete piston cat.D
1A0007670D
$148,96 Unit Price incl. VAT
1
Complete piston cat.C
1A0007670C
$148,96 Unit Price incl. VAT
1
Complete piston cat.B
1A0007670B
$153,84 Unit Price incl. VAT
1
Complete piston cat.A
1A0007670A
$148,96 Unit Price incl. VAT
2
Piston pin
B017148
$6,38 Unit Price incl. VAT
3
Circlip
B015602
$0,25 Unit Price incl. VAT
4
Compression ring 1° cava
B017548
$11,52 Unit Price incl. VAT
5
Compression ring 2° cava
B017549
$12,02 Unit Price incl. VAT
6
Compression ring 3° cava
B017550
$18,58 Unit Price incl. VAT
7
Cylinder - piston - pin - parts- rings assembly
B018012
Not Available
7
Cylinder - piston - pin - parts- rings assembly
1A000770
$267,83 Unit Price incl. VAT
8
Crankcase/cylinder gasket 0,8 mm
B015443
Not Available
8
Crankcase/cylinder gasket 0,6 mm
B015442
$8,65 Unit Price incl. VAT
8
Crankcase/cylinder gasket 0,4 mm
B015441
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
