1
Engine displacement
150
2
Model
LX
3
Year
2011
4
Trim
LX 4T 2V ie E3
5
Parts Catalog

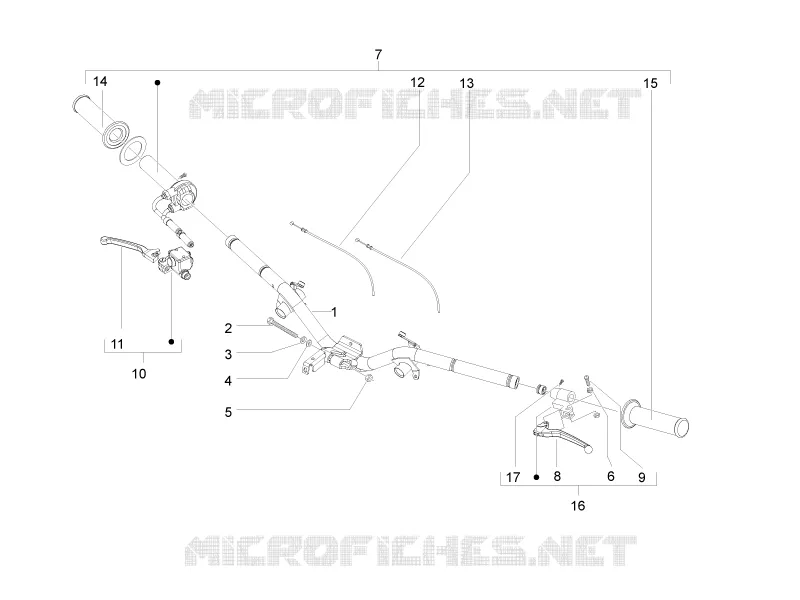

Handlebars - Master cil.
6
Parts Diagram
Parts Catalog
Head unit - Valve
by
Front glove-box - Knee-guard panel
Handlebars - Master cil.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
Handlebar with U.P.
6555105
Not Available
2
Hex socket screw
655554
$3,70 Unit Price incl. VAT
3
Flat washer 18x10,2x2,5
267917
$0,50 Unit Price incl. VAT
4
Flat elastic washer with internal toothing 17x10,3x2
012543
$0,08 Unit Price incl. VAT
5
Nut M10
015330
$0,25 Unit Price incl. VAT
6
Spring
267948
$4,89 Unit Price incl. VAT
7
Throttle control sleeve assembly
CM079727
$151,20 Unit Price incl. VAT
8
Rear brake control lever
564683
$22,55 Unit Price incl. VAT
9
Screw with nut
265249
$3,70 Unit Price incl. VAT
10
Front master cilinder
CM074904
$125,55 Unit Price incl. VAT
11
Brake lever
497042
$18,36 Unit Price incl. VAT
12
Throttle opening transmission
651171
$36,45 Unit Price incl. VAT
13
Throttle closing transmission
651172
$37,80 Unit Price incl. VAT
14
Grip, r.h.
CM083804
$18,36 Unit Price incl. VAT
15
Grip, l.h.
CM083803
$18,36 Unit Price incl. VAT
16
Left hand grip with rear brake lever
CM063804
$51,30 Unit Price incl. VAT
17
Screw with bushing
123394
$3,70 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
