Parts Catalog
Swinging arm
6
Parts Diagram
Parts Catalog
Rear brake - Brake jaw
by
Handlebars - Master cil.

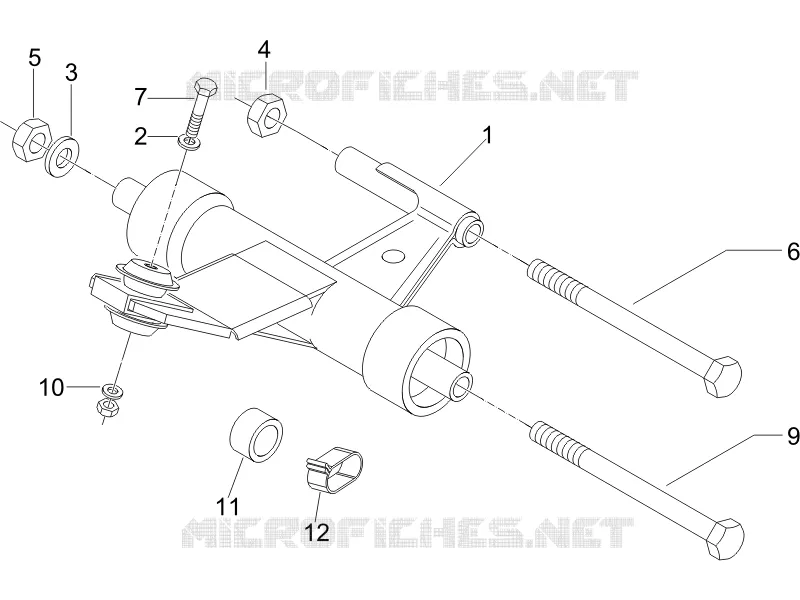

Swinging arm
1
2
3
4
5
6
7
9
10
11
12
1
Swinging arm
56204R
Not Available
2
Washer
122781
$3,65 Unit Price incl. VAT
3
Flat washer
178790
$0,51 Unit Price incl. VAT
4
Self locking nut M10
232108
Not Available
5
Nut m12x1,25 h=12,5
261319
$3,65 Unit Price incl. VAT
6
Hex socket screw M10x215
271779
$2,11 Unit Price incl. VAT
7
Hex socket screw M10x80
560045
$1,43 Unit Price incl. VAT
9
Hex socket screw M12x324
597914
$14,12 Unit Price incl. VAT
10
Washer
709037
$2,25 Unit Price incl. VAT
11
Spacer
562310
$3,65 Unit Price incl. VAT
12
Spring
564223
$4,82 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
