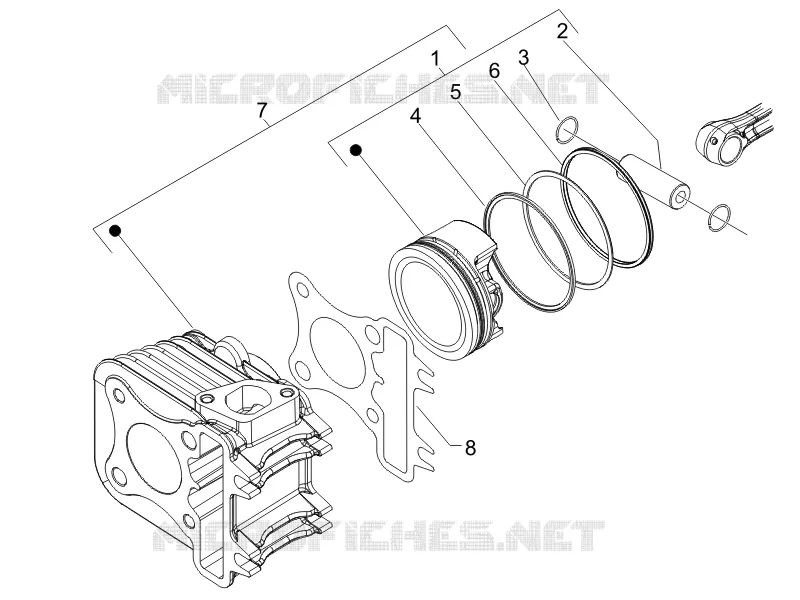

Cylinder-piston-wrist pin unit
1
2
3
4
5
6
7
8
1
Complete piston (Aluminium) Cat.D
8271120004
$51,88 Unit Price incl. VAT
1
Complete piston (Aluminium) Cat.B
8271120002
$48,37 Unit Price incl. VAT
1
Complete piston (Aluminium) Cat.C
8271120003
$48,37 Unit Price incl. VAT
1
Complete piston (Aluminium) Cat.A
8271120001
$48,37 Unit Price incl. VAT
2
Piston pin
482335
$4,92 Unit Price incl. VAT
3
Snap ring
963486
$0,05 Unit Price incl. VAT
4
Compression ring d.57x1
485779
$23,03 Unit Price incl. VAT
5
Oil scraper ring d.57x2,5
485914
$21,88 Unit Price incl. VAT
6
Oil scraper ring d.57x1
486362
$26,68 Unit Price incl. VAT
7
Cylinder assembly-piston-pin (Aluminium)
827113
Not Available
8
Cylinder base gasket 0,8 mm
828148
Not Available
8
Cylinder base gasket 0,6 mm
828147
$2,81 Unit Price incl. VAT
8
Cylinder base gasket 0,4 mm
828146
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
